Offer #2235

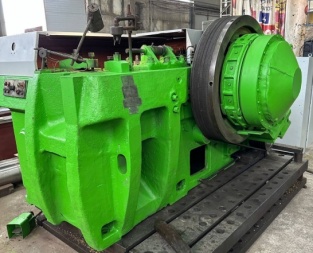

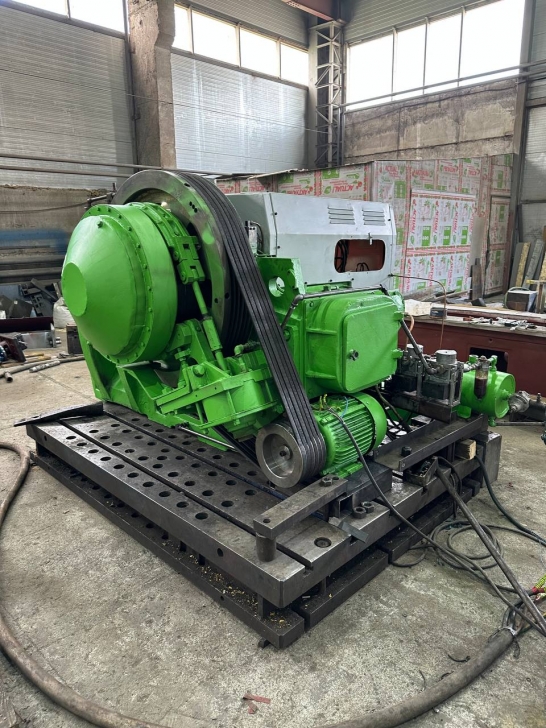

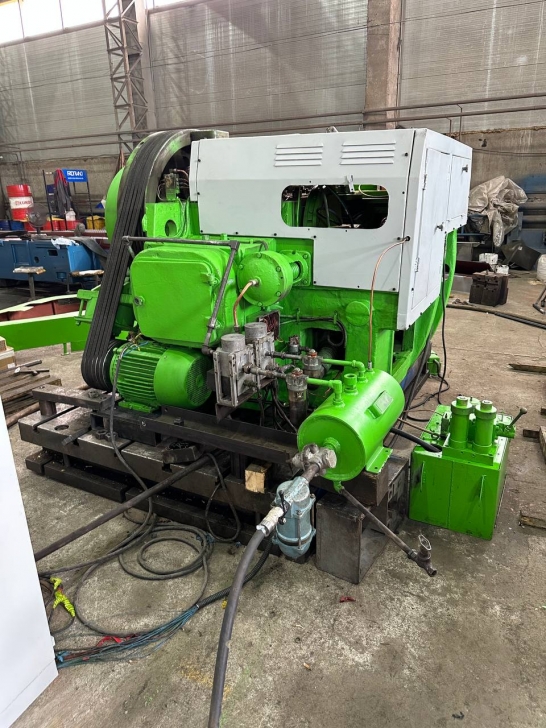

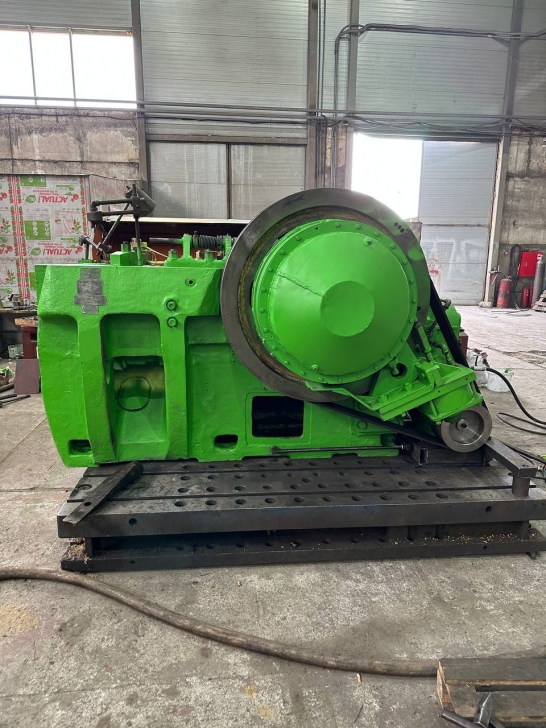

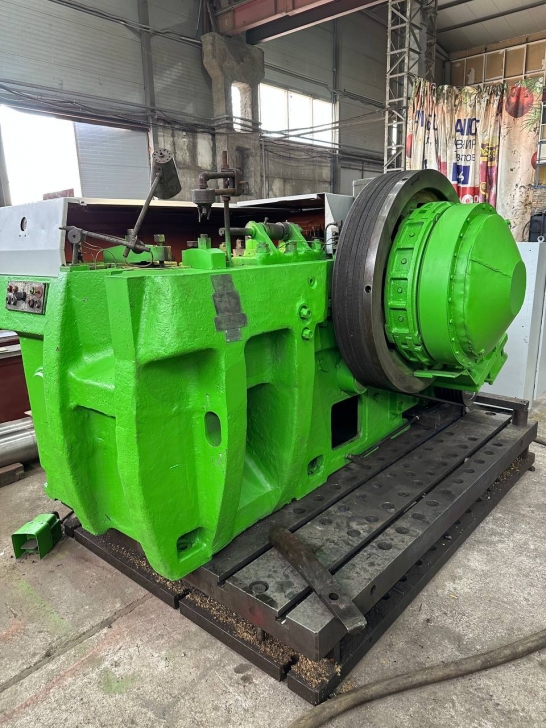

Universal horizontal forging machine VA1132
Manufacturer: TYAZHPRESSMASH
Made in: Russia
Specification:
Max. diameter of work-piece: 35 mm
Max. diameter of upset flange: 60 mm
Upset slide nominal force: 1600 kN
Force on clamping slide with dies closed: 1600 kN
Upset slide stroke: 200 mm
Upset slide stroke with dies closed: 125 mm
Slide continuous idle strokes per minute: 80
Electric motor power: 17 kW
Machine overall dimensions:
-Length: 2100 mm
-Width: 2820 mm
-Height: 1600 mm
Weight: 15800 kg
Description:
Mechanics, lubrication system, pneumatics and electrical of machinery were refurbished. It comes with set of 2 additional molds and an enlarged air tank and receiver. Here is complete set of all documentation, including drawings for mechanical components.
