Offer #1103

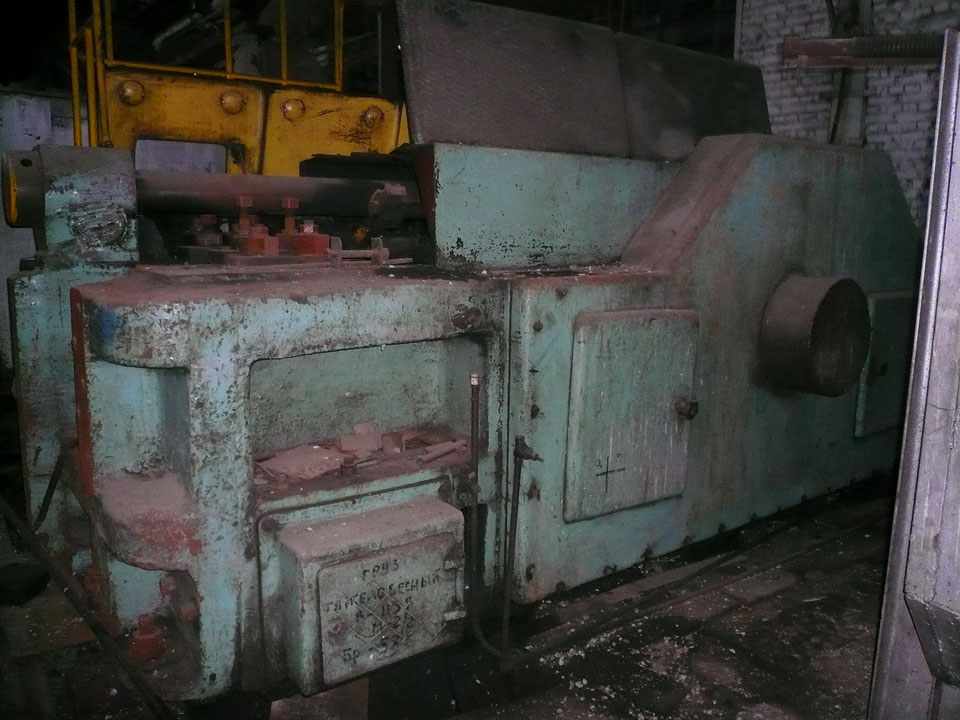

Universal horizontal forging machine V1138
YOM: 1983
Manufacturer: TYAZHPRESSMASH
Made in: Russia
The machine is intended for hot forming of forgings from cut-to-length blanks or rods in multiple impression dies.The machines can be used for the following technological operations: upsetting, semi-piercing, piercing, reduction, cutting, bending. The horizontal forging machine may operate in the following modes: single strokes, continuous strokes, set up.
Specification:
Max. diameter of work-piece: 90 mm
Max. diameter of upset flange: 120 mm
Upset slide nominal force: 6300 kN
Force on clamping slide with dies closed: 6300 kN
Stroke:
-Movable die: 100 mm
-Upset slide (full): 350 mm
-Die closing: 230 mm
Slide strokes per minute: 42
Main motor power: 45 kW
Overall machine dimensions:
-Length: 4835 mm
-Width: 3450 mm
-Height: 2880 mm
Machine weight: 55000 kg
