Offer #2072

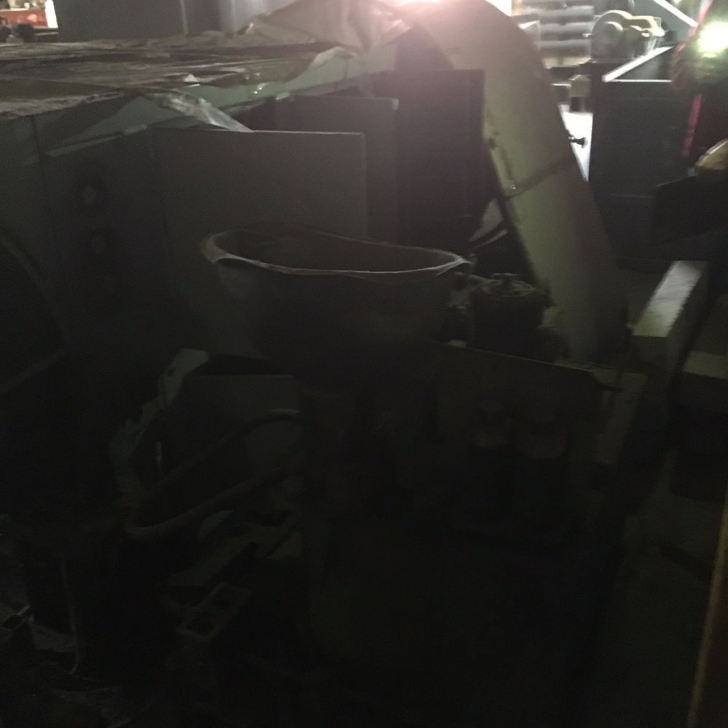

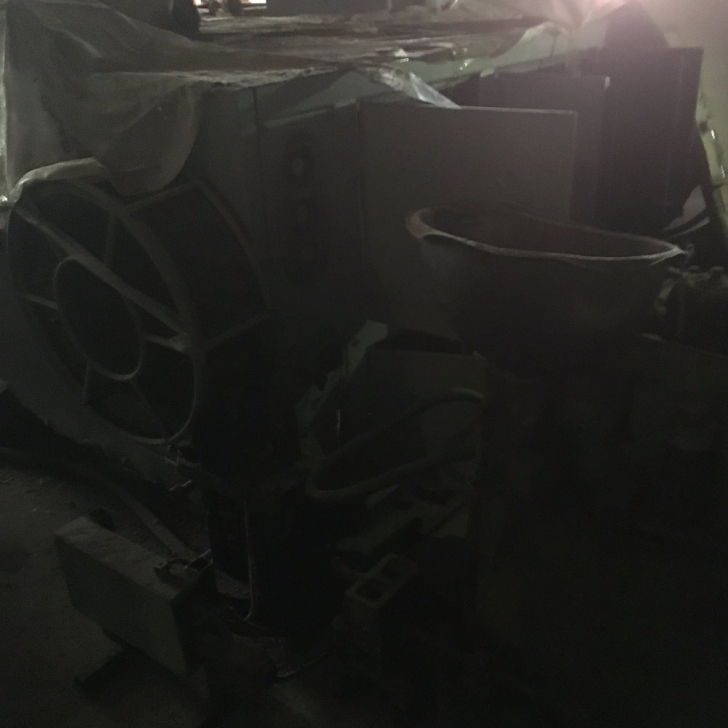

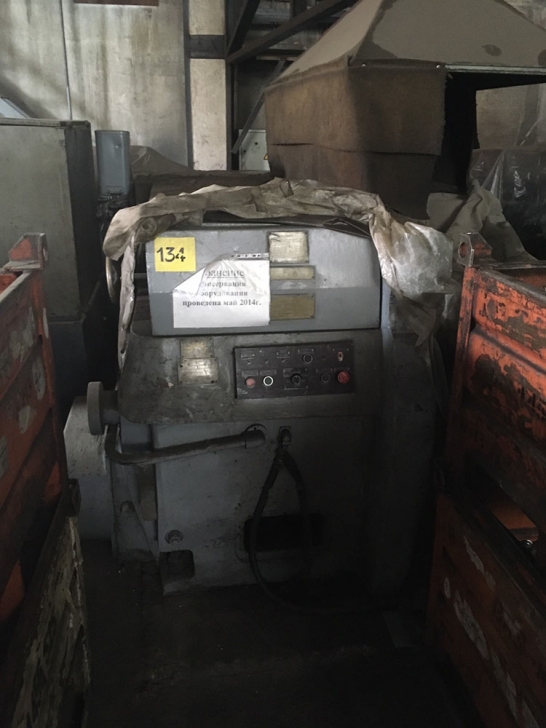

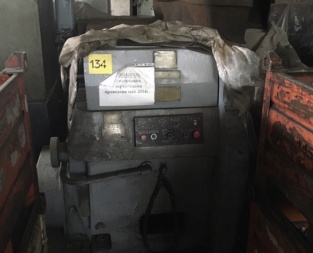

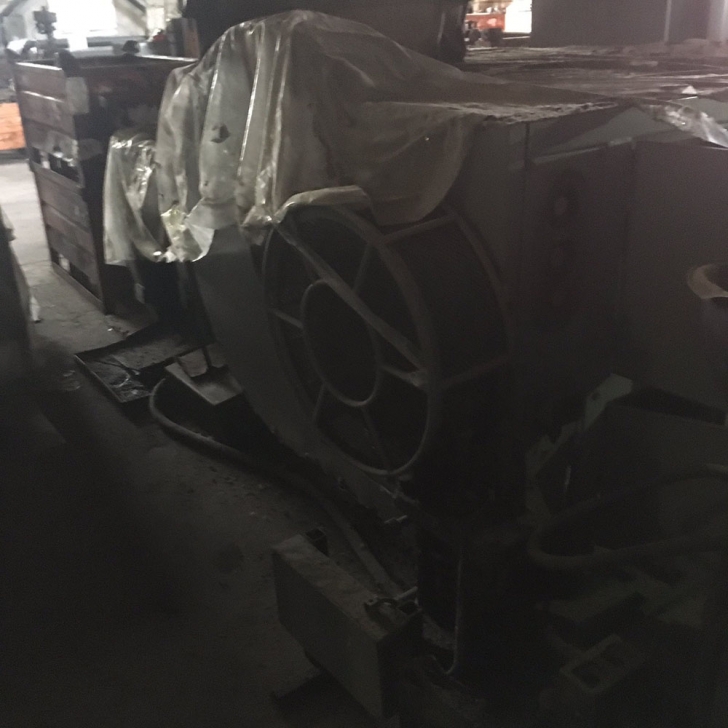

Horizontal forging machine VV1134
Manufacturer: TYAZHPRESSMASH
Made in: Russia
Specification:
Max. diameter of initial blank: 30 mm
Blank length:
-Min.: 120 mm
-Max.: 300 mm
Max. diameter of upset flange: 60 mm
Upset slide nominal force: 2500 kN
Max. force on clamping slide with dies closed: 2500 kN
Stroke:
-Movable die: 100 mm
-Upset slide (full): 220 mm
-Die closing: 140 mm
Slide strokes per minute: 45
Machine overall dimensions:
-Length: 6050 mm
-Width: 4600 mm
-Height: 2260 mm
Machine weight: 24680 kg
Description:
The machine is intended for hot forming of forgings from cut-to-length blanks or rods in multiple impression dies. The machines can be used for the following technological operations: upsetting, semi-piercing, piercing, reduction, cutting, bending.
The horizontal forging machine may operate in the following modes: single strokes, continuous strokes, set up.
