Offer #1711

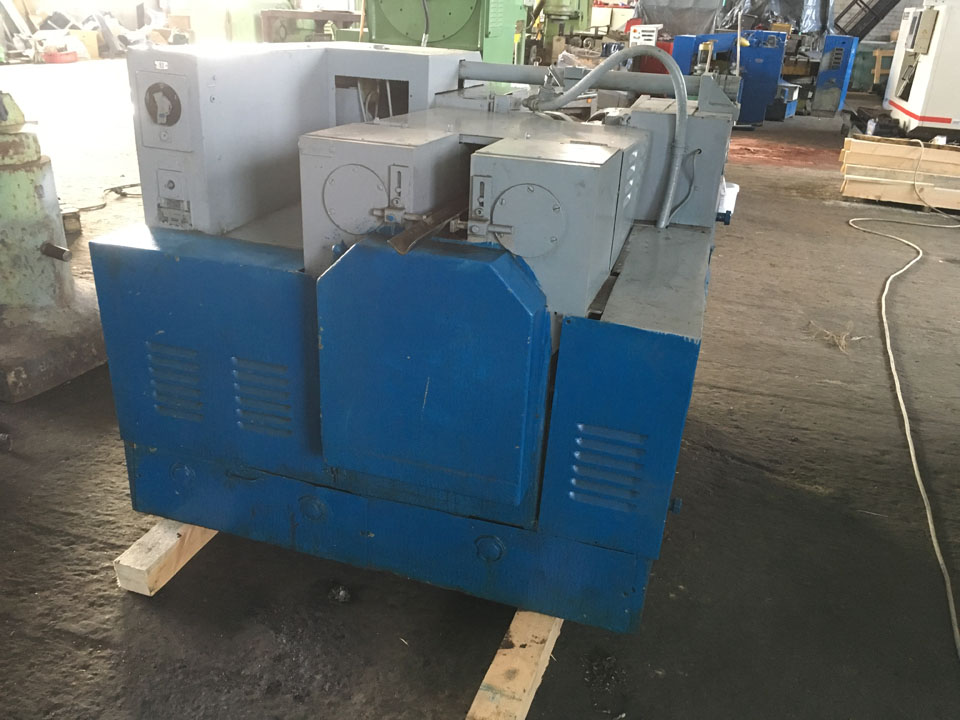

Thread rolling machine UPWS 31.5.1
Manufacturer: VEB Wema Bad Duben
Made in: Germany
Specification:
Adjustable rolling capacity: 0-315 kN
Diameter of billet: (gal diameter of rolling?)
-Min.: 10 mm
-Max.: 100 mm
Max. rolling step: 10 mm
Rolling tool diameter: 195 mm
Spindle diameter: 80 mm
Length of the spindle: 200 mm
Speed of operation per 1 min.: 500 – 3500 mm
Max. corner of spindle twist: 10 degree
Main motor power: 12,5 kW
Dimmensions: 1980x1680x1375 mm
Total weight: 3750 kg
