Offer #1717

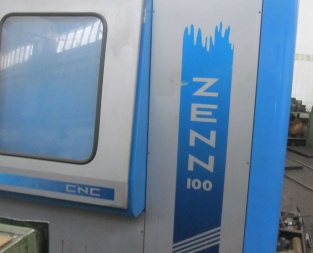

CNC Spinning and shear forming machine ZENN-100
YOM: 2010
Manufacturer: DENN
Made in: Spain
The machine was manufactured and purchased in December 2010. It was commissioned in June 2011. It is in perfect technical condition.
Specification:
Max. blank diameter: 1000 mm
Max. length: 1200 mm
Max. wall thickness: 5 mm
Height of centers over the bed: 500 mm
Distance between centers: 1200 mm
Longitudinal travel of the carriage: 600 mm
Transversal travel of the carriage: 400 mm
Effort at the longitudinal travel: 40 kN
Effort at the transversal travel: 40 kN
Max. speed of longitudinal travel: 15 m/min
Max. speed of transversal travel: 15 m/min
Tailstock stroke: 400 mm
Max. effort of tailstock: 20 kN
Main motor power: 30,5 kW
Power of hydraulic group motor: 4 kW
Rotation speed of main spindle: 200-3000 rpm
Voltage: 380 V, 50 Hz
Work-piece thickness: Aluminium 6 mm; Steel St. 37 4 mm; Stainless steel 2,5 mm
