Guillotine shears NA3225

Offer #2049

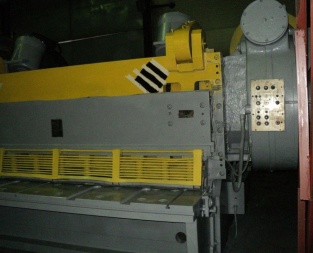

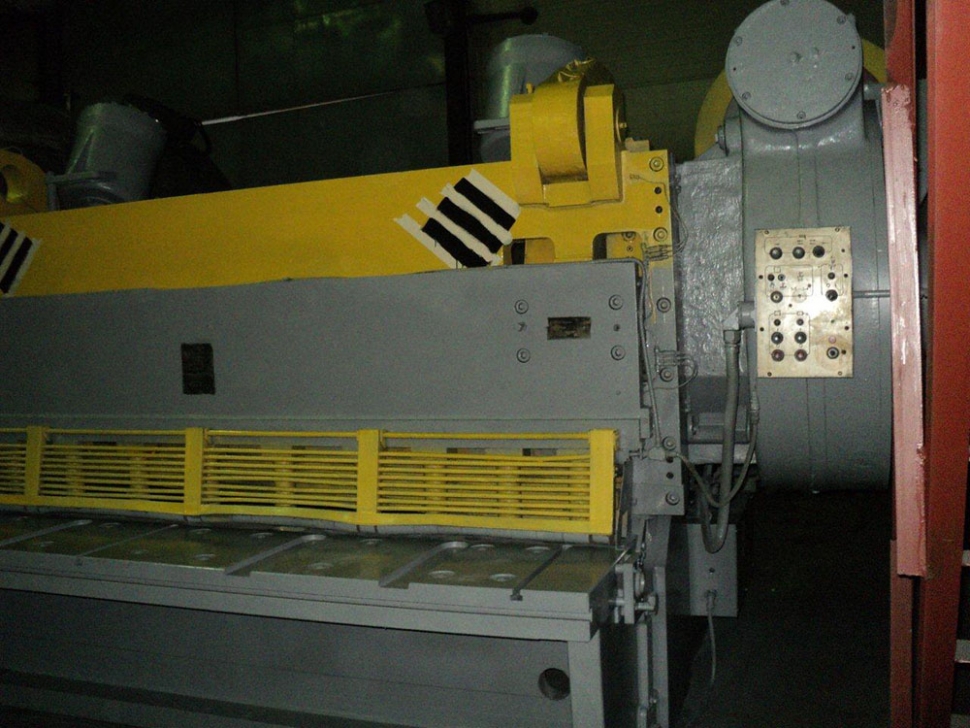

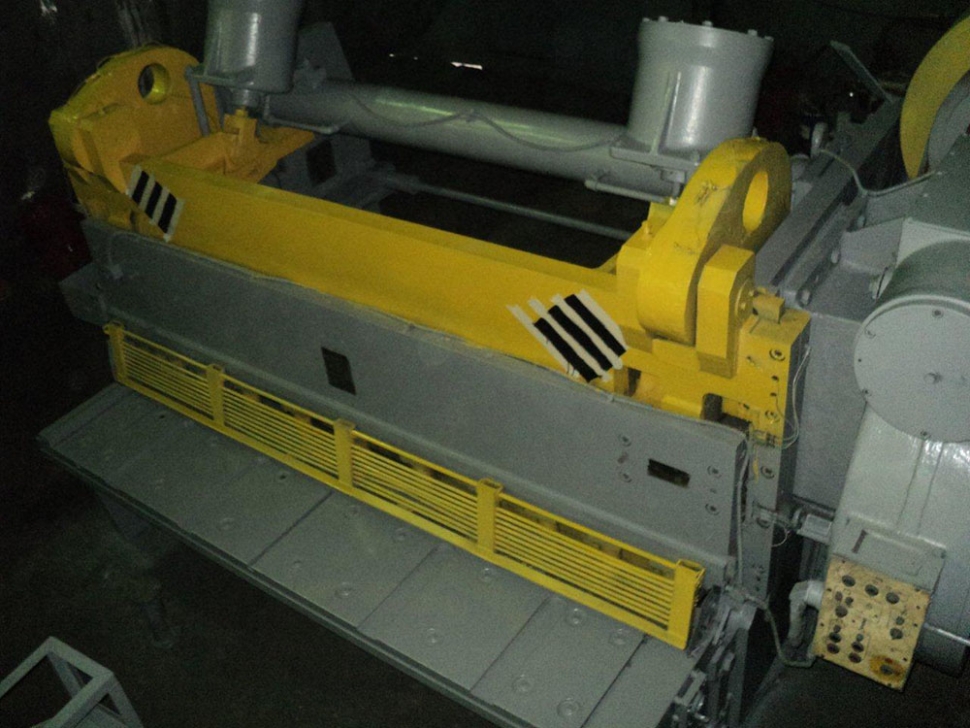

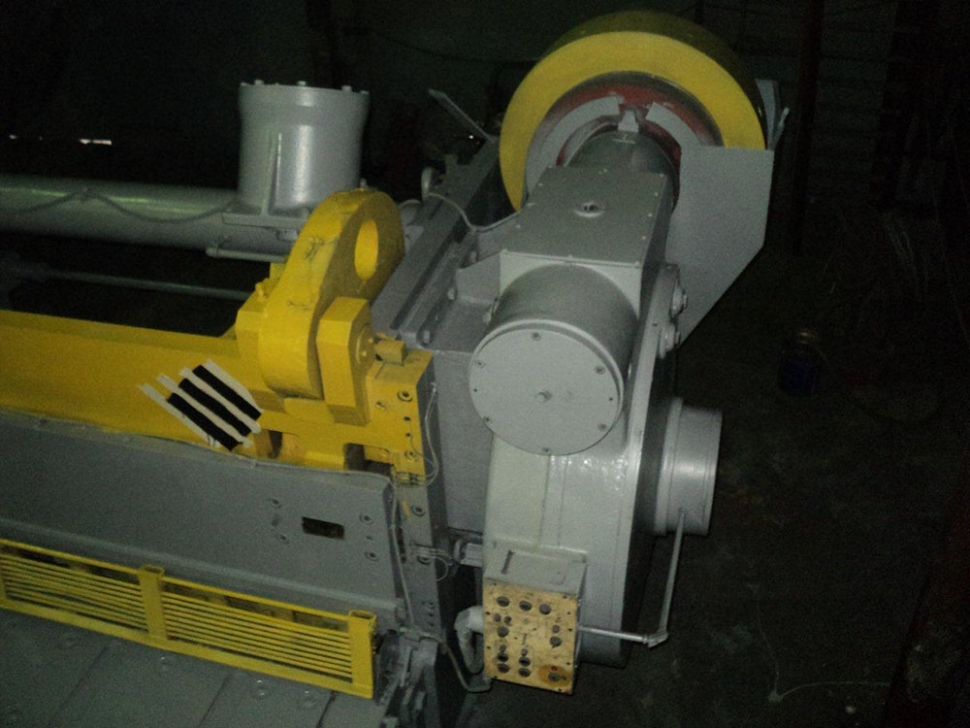

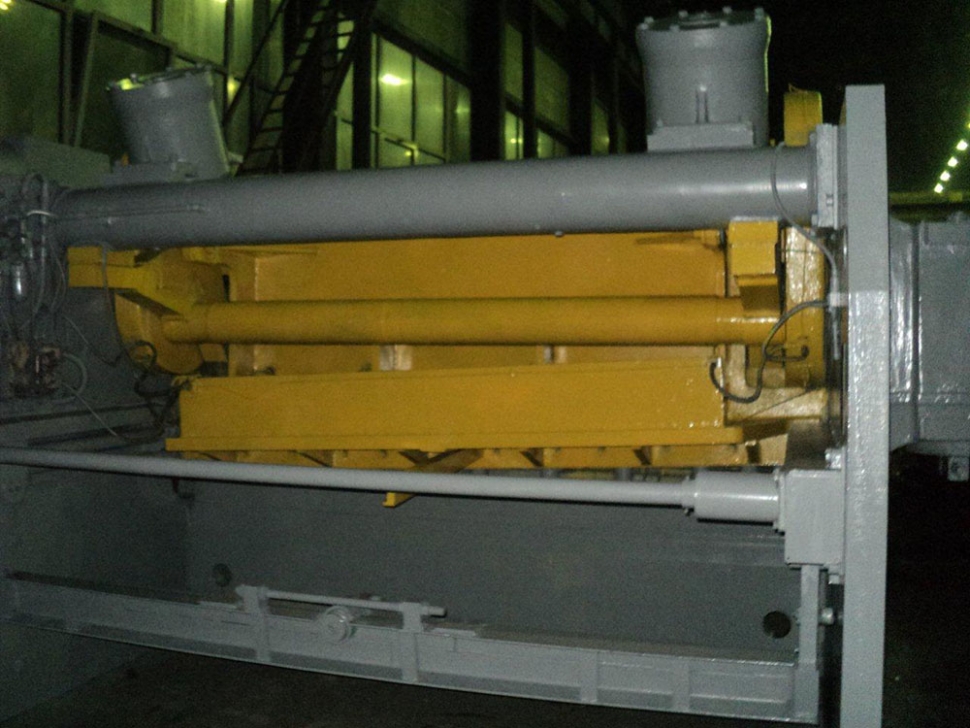

Guillotine shears NA3225
YOM: 1990
Manufacturer: Donpressmash
Made in: Russia

Specification:

Max. dimensions of the cut metal: 32х3150 mm
Knife stroke frequency: 30 min-1
Size of a cross cut: 100 mm
Mechanical movement of the back support: 0...1000 mm
Coupling type: pneumatic friction disc
Brake type: pneumatic-spring disc
Type of clamping device: hydraulic cylinders
Electric motor power: 55 kW
Full weight of shears: 33950 kg

Description:

The HA3225 guillotine is intended for straight-line cutting of sheet material. It is possible to cut non-metallic sheet materials, excluding the rapid blunting of the cutting edges of the knives and cracking of the cut work-piece. Shears can be used in the procurement workshops of machine-building enterprises using sheet blanks.
