Offer #1488

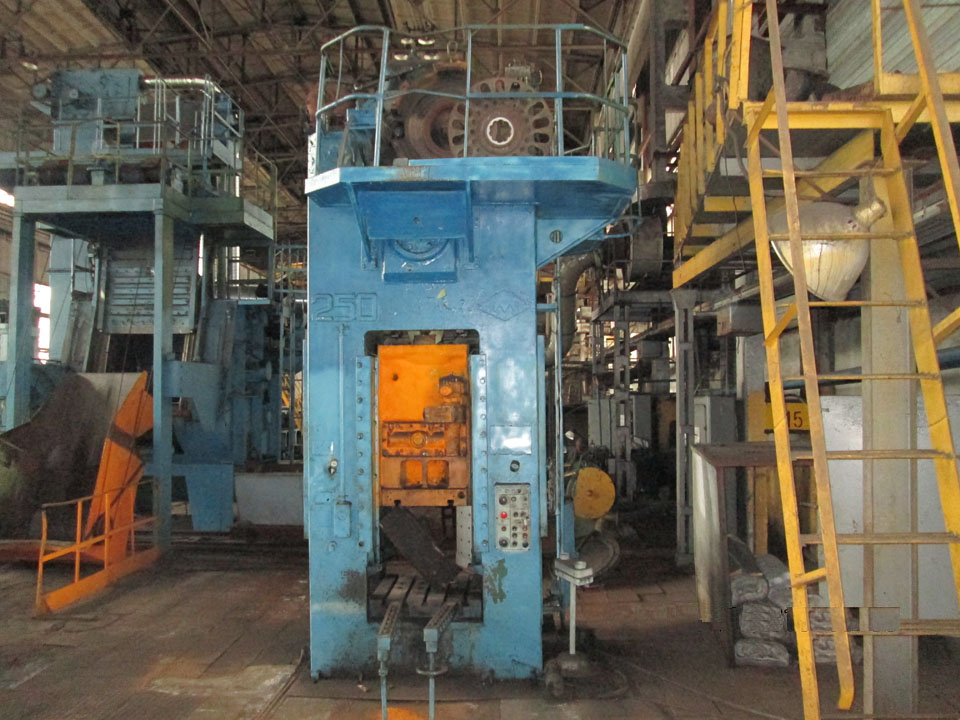

Trimming press VORONEZH KB9534
YOM: 1990
Country of origin: Russia
Manufacturer: VORONEZH
Specification:
Capacity: 250 tons
Ram stroke: 320 mm
Ram continuous stroke number per minute: 32
Ram single stroke number per minute: 24
Ram size: 650x650 mm
Table size: 800x800 mm
Aperture in table: 500x500 mm
Max. distance between bolster and ram: 390 mm
Adjustment: 140 mm
Bolster size: 850x850
Bolster thickness: 140 mm
Main motor: 27 kW
Dimensions:
-Length: 3260 mm
-Width: 2970 mm
-Height: 5180 mm
Machine weight: 25800 kg
