Offer #2145

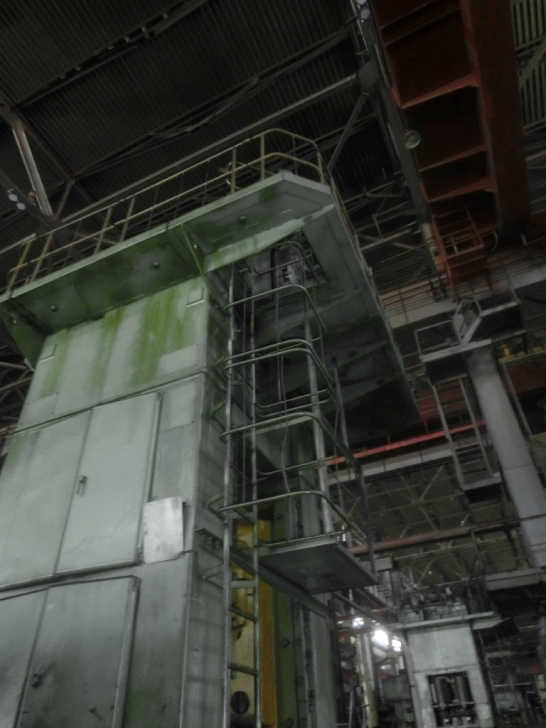

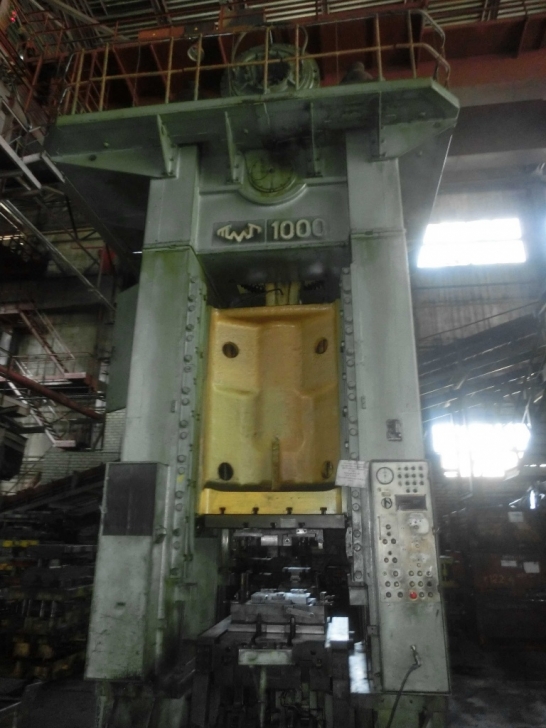

Closed single-crank press VORONEZH KG2540
YOM: 1990
Manufacturer: Voronezh
Made in: Russia
Specification:
Maximum force: 1000 tons
Slider stroke length: 400 mm
Unattainable-course: 12 mm
Number of courses of a slider per minute: 20 rpm
Number of single turn-on: 15 rpm
The closed height: 730 mm
Adjustment: 200 mm
Under-forging plate:
-From left to right: 1250 mm
-From front to rear: 1250 mm
-Thickness: 260 mm
Slider overall dimensions: 1200x1460 mm
Aperture in a table: 800x800 mm
Window dimensions in cheeks: 1260x780 mm
Course of a rigid pusher in a slider: 70 mm
Force of a rigid pusher in a slider ton-force: 50
Main electric motor power: 90 kW
Course of pneumatic pillow: 160 mm
Force of pushing out of a pneumatic pillow ton-force: 40
Hydro-pneumatic pillow:
-Working course: 125 mm
-Force of pushing out ton-force: 12
-Force of a clip ton-force: 125
Press overall dimensions: 4310x3870x6790 mm
Press weight: 77100 kg
