Offer #2156

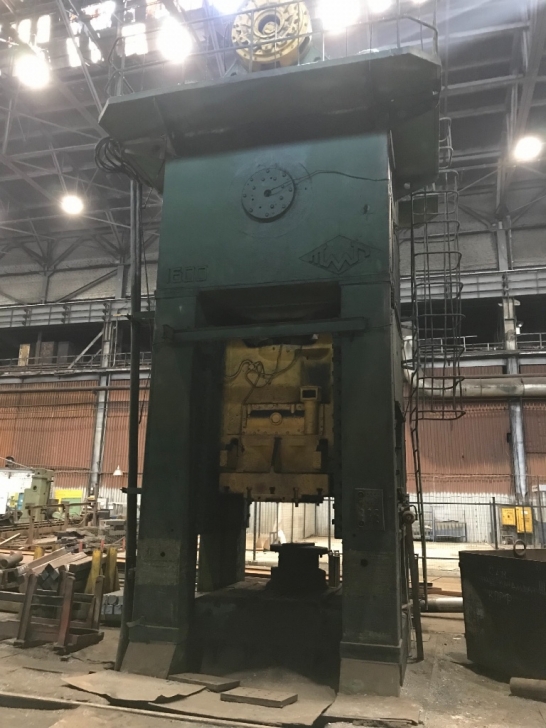

Closed single-crank press VORONEZH K9542
Manufacturer: Voronezh
Made in: Russia
Specification:
Capacity: 1600 tons
Slide stroke: 630 mm
Slide stroke to the extreme bottom position where the press develops its rated capacity: 7 mm
Number of continuous strokes per 1 min: 16
Max number of single strokes per 1 min: 12
Max distance between bolster plate and slide: 810 mm
Adjustment: 220 mm
Table (bolster plate) dimensions:
-Left to right: 1600 mm
-Front to back: 1600 mm
Slide dimensions:
-Left to right: 1600 mm
-Front to back: 1600 mm
Window in upright dimensions:
-Left to right: 1650 mm
-Height: 1550 mm
Main motor: 110 kW
--Dimensions:
-Length: 4670 mm
-Width: 4670 mm
-Height from floor level: 8110 mm
Machine weight: 140 tons
