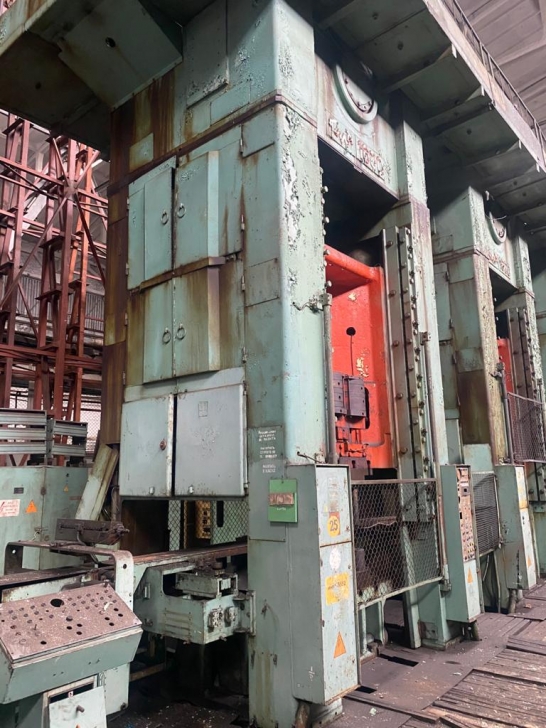

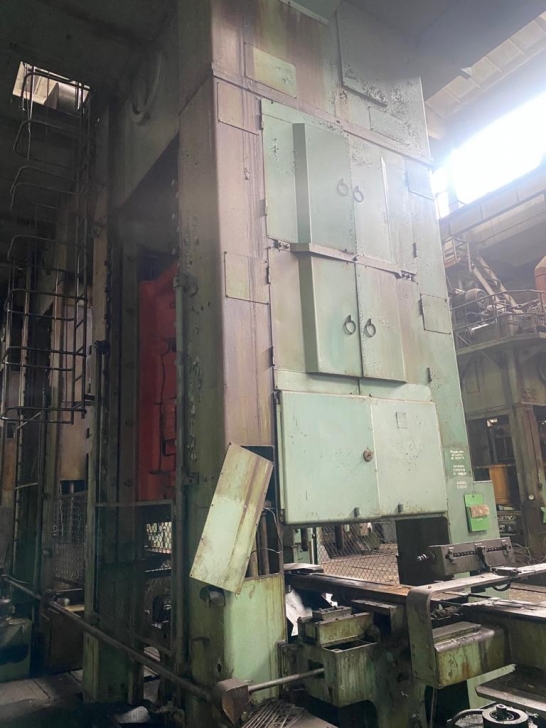

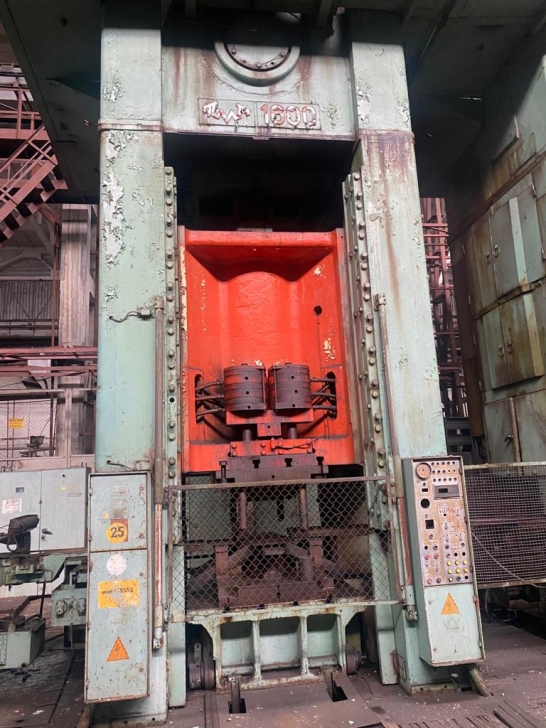

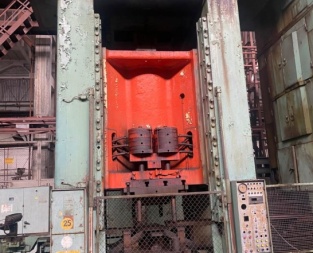

Closed single-crank press VORONEZH K04150242

Offer #2129

Closed single-crank press VORONEZH K04150242
YOM: 1982
Manufacturer: Voronezh
Made in: Russia

Specification:

Maximum force: 1600 tons
Slider stroke length: 400 mm
Unattainable-course: 12 mm
Number of courses of a slider per minute: 16 rpm
Number of single turn-on: 12 rpm
The closed height: 870 mm
Adjustment: 220 mm
Under-forging plate:
 -From left to right: 1600 mm
 -From front to rear: 1600 mm
 -Thickness: 650 mm

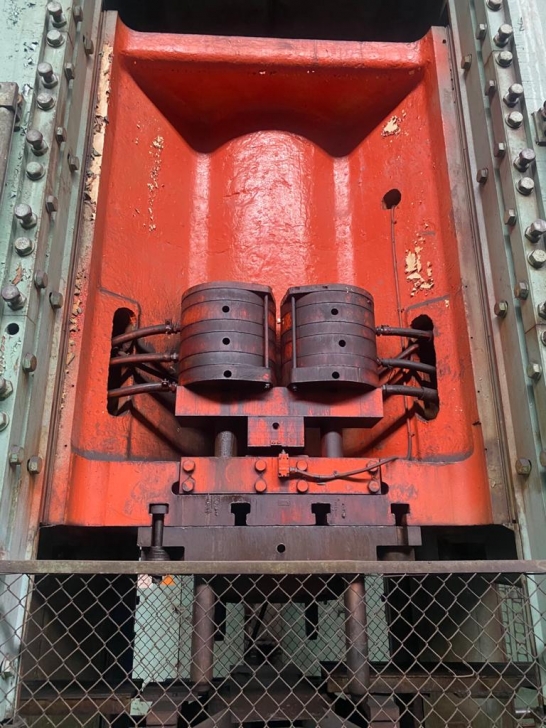

Slider overall dimensions: 1600x1600 mm
Aperture in a table: 1000x1000 mm
Window dimensions in cheeks: 1650x1650 mm
Course of a rigid pusher in a slider: 100 mm
Force of a rigid pusher in a slider ton-force: 80
Main electric motor power: 110 kW
Course of pneumatic pillow: 160 mm
Force of pushing out of a pneumatic pillow ton-force: 71
Hydropneumatic pillow:
 -Working course: 250 mm
 -Force of pushing out ton-force: 25
 -Force of a clip ton-force: 250
Press overall dimensions: 4670x4670x8110 mm
Press weight: 140 tons
