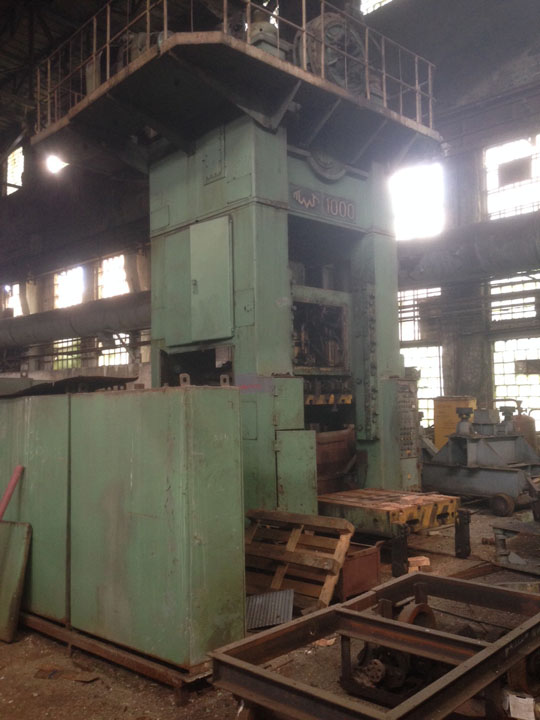

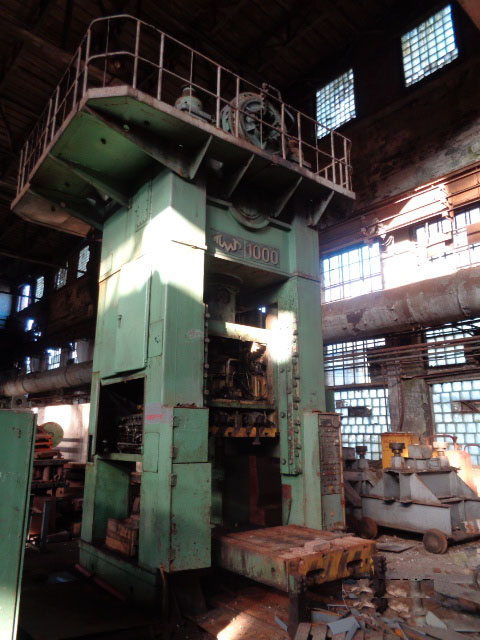

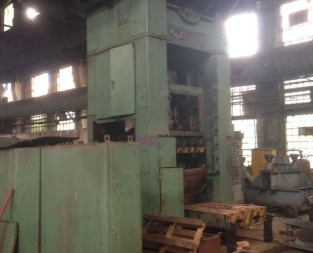

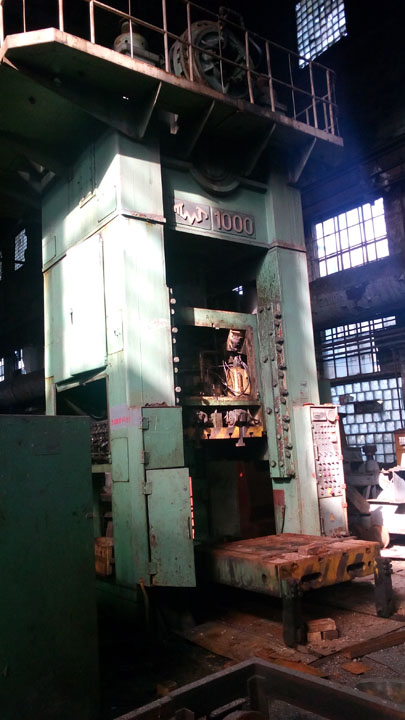

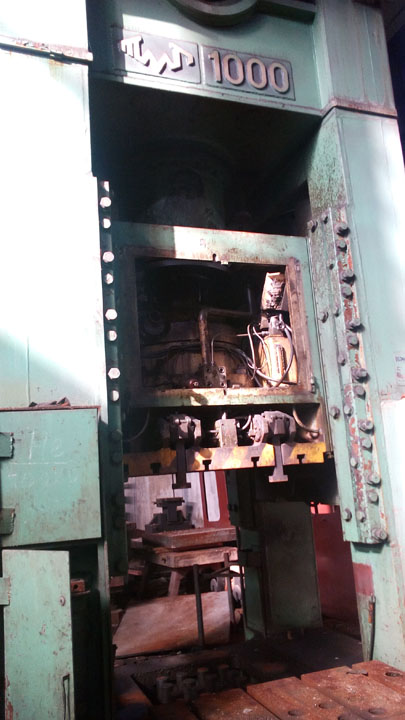

Closed single-crank press KB2540

Offer #1499

Closed single-crank press KB2540
YOM: 1988
Manufacturer: Voronezh
Made in: Russia

Press was assembled and started working in 1991.
It has moving table. Press has hydrosafety lock in the slide.

Specification:

Maximum force: 1000 tons
Slider stroke length: 400 mm
Unattainable-course: 12 mm
Number of courses of a slider per minute: 20
Number of single turn-on: 15
The closed height: 730 mm
Adjustment: 200 mm
Under-forging plate:
 -From left to right: 1250 mm
 -From front to back: 1250 mm
 -Thickness: 260 mm
Slider overall dimensions: 1200x1460 mm
Aperture in a table: 800x800 mm
Window dimensions in cheeks: 1260x780 mm
Course of a rigid pusher in a slider: 70 mm
Force of a rigid pusher in a slider ton-force: 50
Main electric motor power: 75 kW
Course of pneumatic pillow: 160 mm
Force of pushing out of a pneumatic pillow ton-force: 40
Hydro-pneumatic pillow:
 -Working course: 125 mm
 -Force of pushing out ton-force: 12
 -Force of a clip ton-force: 125
Press overall dimensions: 4310x3870x6575 mm
Press weight: 77100 kg

Description:

It is used for variety of sheet metal parts using various cold forming operations: cutting, punching, deep drawing, bending, etc. You can also carry out trimming of hot or cold forging burr produced on the hot stamping equipment.
