Closed single-crank press KB2538

Offer #714

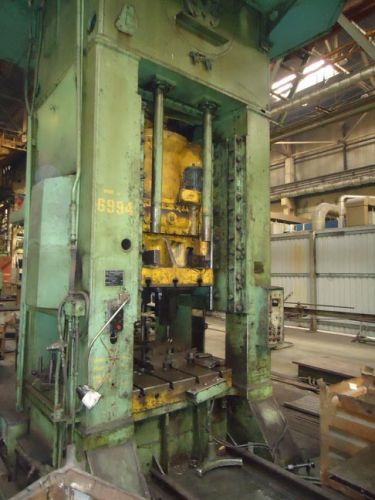

Closed single-crank press KB2538
YOM: 1986
Country of origin: Russia
Manufacturer: Kalinin

Hydro-pneumatic pillow is available.
Press is working condition.

Specification:

Maximum force: 630 ton
Slider stroke length: 320 mm
Number of courses of a slider per minute: 20
Max distance between bolster and ram: 800 mm
Adjustment: 180 mm
Table size: 1250x1250 mm
Slider overall dimensions: 1200x1000 mm
Aperture in a table: 800x800 mm
Window dimensions in cheeks: 750x400 mm
Hydro-pneumatic pillow: available
Press overall dimensions: 3659x3680x6370 mm
Press weight: 55500 kg
