Offer #1306

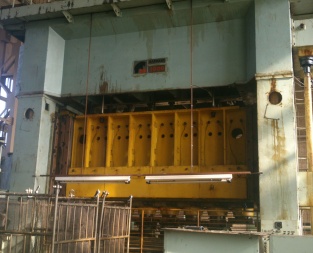

Automatic transfer press BARNAUL AB6140
Manufacturer: BARNAUL
Made in: Russia
Condition: good, complete, working.
Specification:
Nominal force on the main slide: 1000 tons
Nominal force on the cutting slide: 250 tons
Main slide stroke: 450 mm
Cutting slide stroke: 60 mm
Number of slide stroker per minute, continuously adjustable:
-Min.: no more than 12
-Max.: at least 25
Closed height on the main slide: 800-700 mm
Max. work-piece height: 160 mm
Max. distance between table and die holder in lower position of main slide: 1000 mm
Distance adjustment between table and die holder: 100 mm
Number of working positions, inc. cutting position: 9
Distance between axes and die holder: 500 mm
Table dimmensions: 4000x1300 mm
Distance betwen collumns: 4400 mm
Electric motor power: 132 kW
Press weight: 220 tons
Structure features:
-Automatic multipositional transfer presses are designed for consecutive multioperational sheet stamping.
-Equipped with mechanical aids for stamping from a strip. Can be equipped with the feeder of work-pieces.
-The cutting slide (on automatic machines with a force of 1000-10000 kN) is separated from the main one and works with displaced cycle (in relation to the main one).
-The cutting of work-pieces can be done in two rows.
-Positions of automatic machines are equipped with pneumopillows.
-Die holders of the main slide of automatic machines with a force of 4000-10000 kN are equipped with a hydrosafety lock on effort.
