Offer #1989

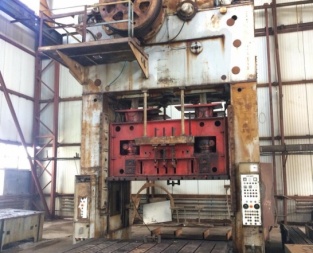

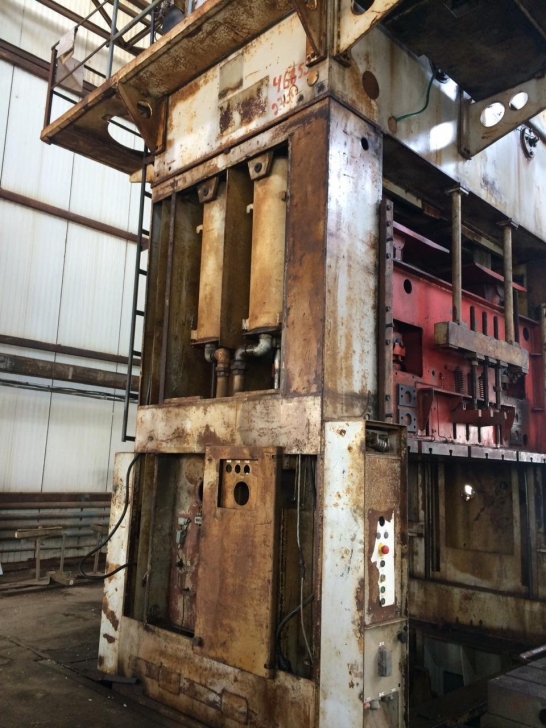

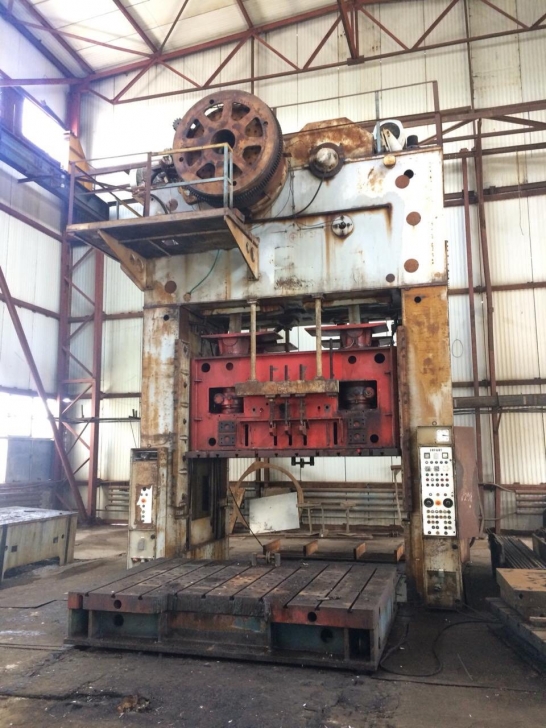

Straight side single action mechanical press ERFURT PKZV III 500.1 FS
Manufacturer: Erfurt
Made in: Germany
Specification:
Max. pressing force of slide (at 12,5 mm distance to the lower dead point): 500 ton
Max. pressing force of slide (at 200 mm distance to the lower dead point): 160 ton
Number of single strokes at continuous work per minute: 20
Distance between side columns: 2800 mm
Slide stroke: 500 mm
Slide adjustment: 500 mm
Max. extract depth: 200 mm
Max. shut height between bolster plate and slide (stroke down, adjustment up): 1200 mm

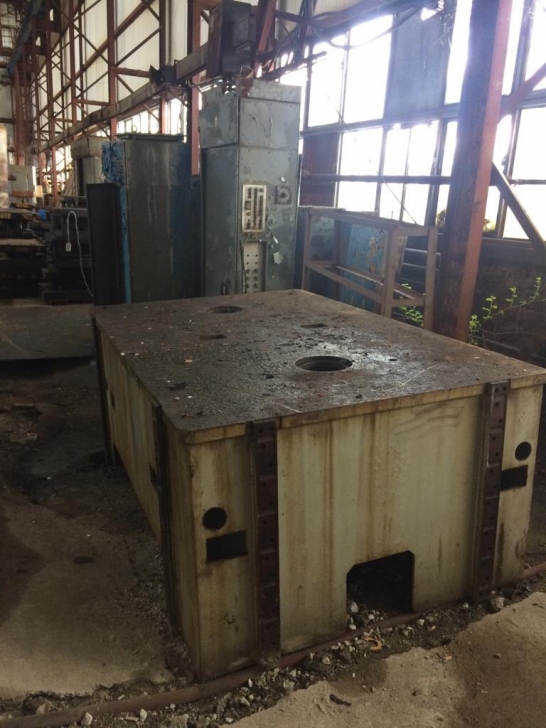

Height of pull-out table: 500 mm

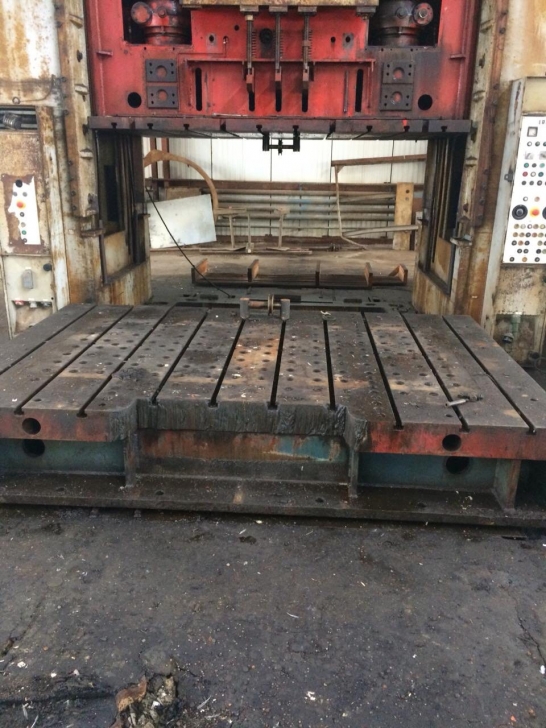

Bed area (width x depth): 3150x2100 mm
Slide area (width x depth): 3150x2100 mm
Opening in the bed (width x depth): 2500x1600 mm
Main motor power: 75 kW
Number of no-load strokes per minute: 20
Cushion force in the bolster: 100 tons
Cushion stroke: 200 mm
Cushion plate dimensions: 2480x1580 mm
Height above floor: 7200 mm
