Offer #878

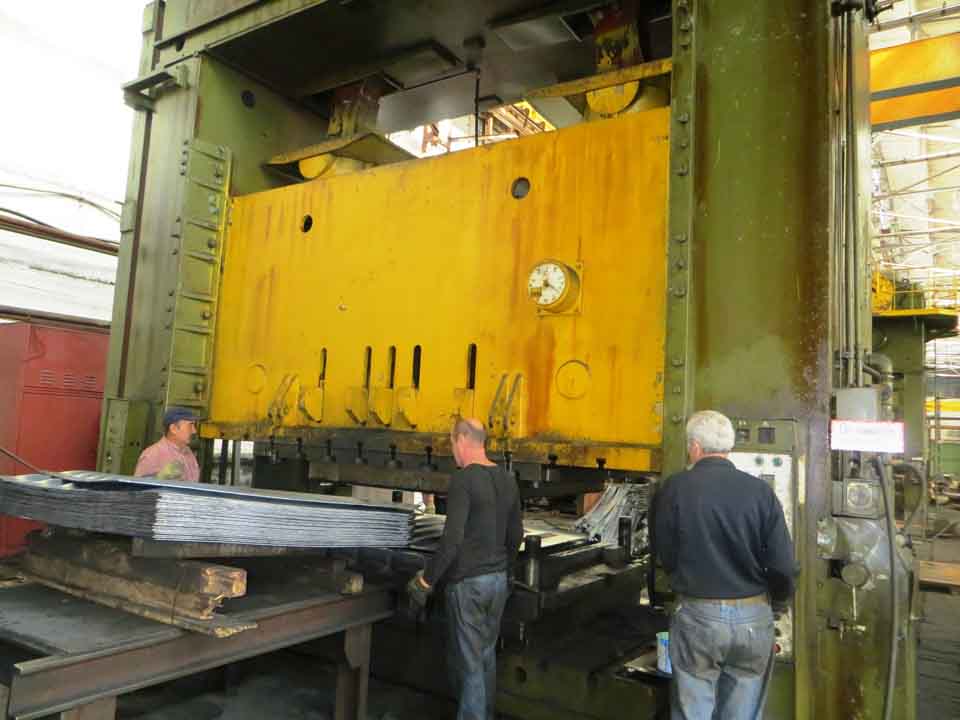

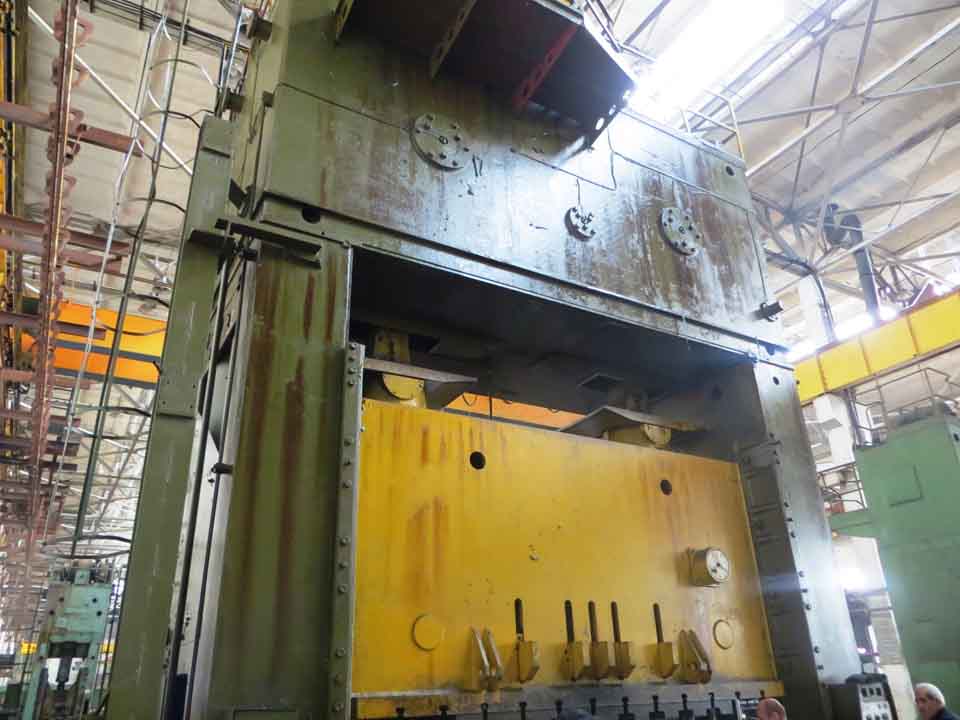

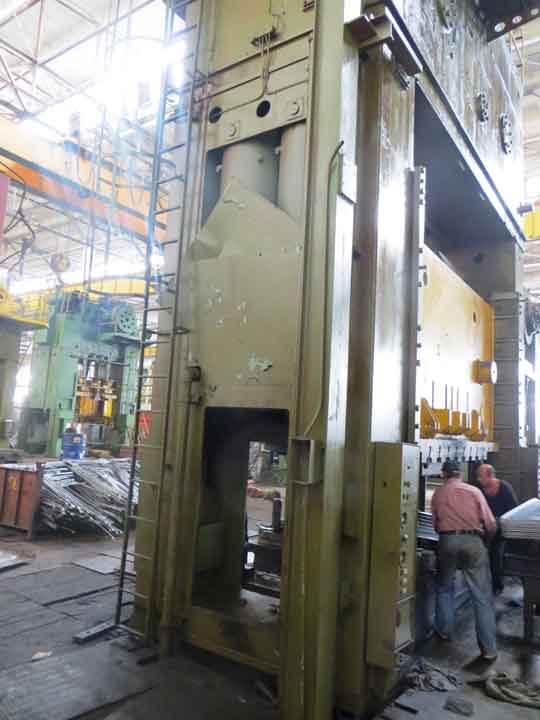

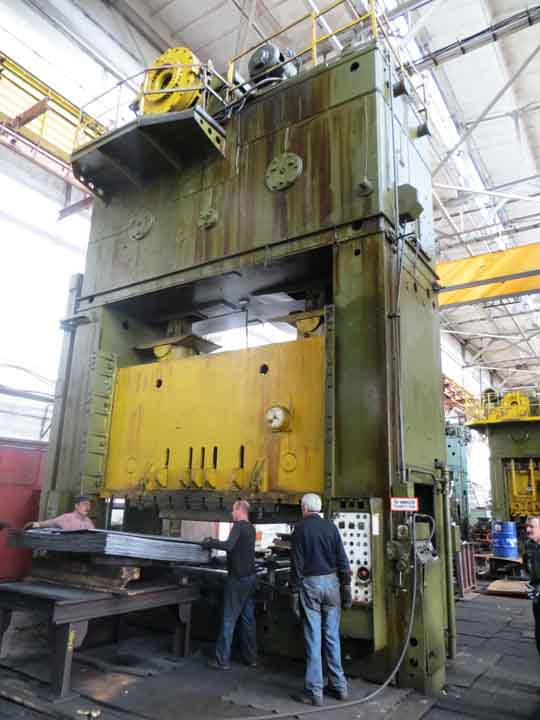

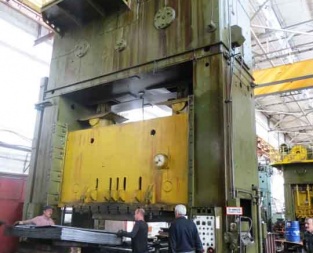

Straight side sheet stamping press ERFURT PKZZ I 1250
Manufacturer: ERFURT
Made in: Germany
Quantity: 2 units
Specification:
Max. slider force at the distance of 12,5 mm in the lower dead point: 1250 tons
Slider force at the distance of 250 mm in the lower dead point: 350 tons
Number of single strokes per minute: 11
Slider stroke: 630 mm
Slider adjustment: 630 mm
The closed height: 1165 mm
Table pillow:
-Max. stroke: 250 mm
-Stroke adjustment: 250 mm
-Max. holding force: 250 tons
-Max. ejection force: 40 tons
Table dimensions: 4000x1800 mm
Bolster dimensions: 3950x1800 mm
Table gap: 3750x1300 mm
Main motor power: 132 kW
Stay spacing: 4000 mm
Press weight: 215000 kg
Weight of a table in assembly with an exhaust pillow and a plate of a pusher: 42600 kg
Weight of a table (without built in details): 27400 kg
Weight of an exhaust pillow: 3000 kg
Weight of a plate of a pusher: 5400 kg
Weight of a lateral rack in assembling: 8000 kg
Weight of a cross-arm in assembling: 44000 kg
Weight of a cross-arm without built in details: 24800 kg
Weight of the top part of a cross-arm: 7800 kg
Weight of a shaft of a flywheel with a pine forest with a muff and brakes: 16900 kg
Weight of a slider in assembling: 33600 kg
Weight of coupling bolts: 3400 kg
