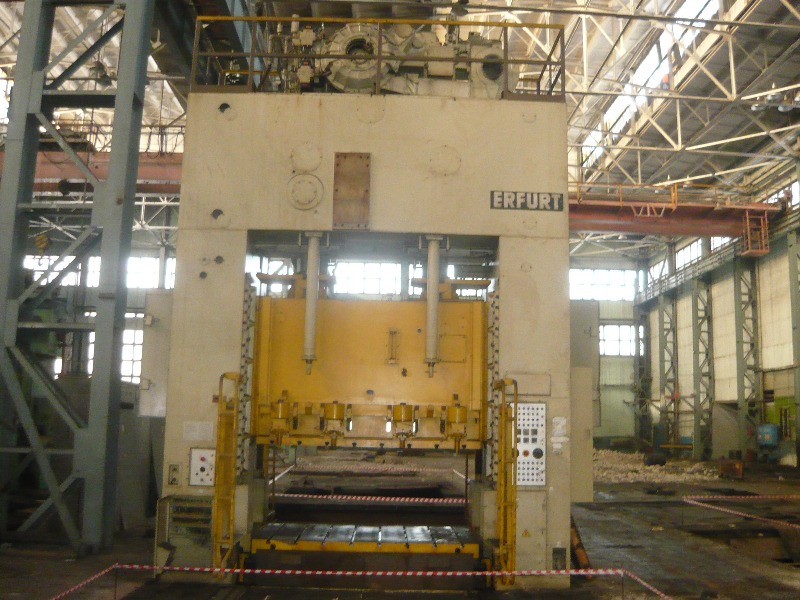

Sheet stamping press ERFURT PE-2U-315/2500/1450

Offer #731

Sheet stamping press ERFURT PE-2U-315/2500/1450
YOM: 1987
Manufacturer: ERFURT
Made in: Germany

Specification:

Max slide-block force by the distance until lower dead point 12,5 mm: 3150 kN
Slide-block force by the distance until lower dead point 160 mm: 1100 kN
Amount of idle forces: 25 mm
Slide-block course: 400 mm
Min closed shut height: 580 mm
Max closed shut height: 900 mm
Moving table dimensions: 2500x1450 mm
Slide-bock dimensions: 2500x1400 mm
Table pillow:
 -Max course: 160 mm
 -Course adjustability: 160 mm
 -Max force of doubled power supply: 630 kN
 -Max force of ejection: 630 kN
Main motor power: 45 kW
Heigh above floor level: 7100 mm
Press weight: 71,3 ton
