Offer #2080

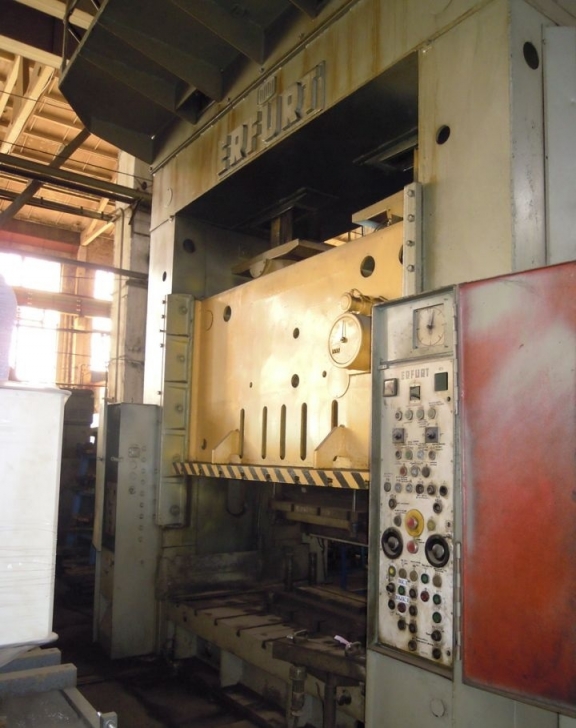

Double column crank stamping press ERFURT PKZZ III 315.1 FS
Manufacturer: ERFURT
Made in: Germany
Specification:
Max. capacity: 315 tons
Table size: 2500x1400 mm
Slide stroke: 400 mm
Slide stroke per 1 min: 25
Slide adjustment: 400 mm
Slide area: 2450x1400 mm
Distance between columns: 2500 mm
Table height over floor: 480 mm
Daylight: 1080 mm
Shut height (stroke down-adjustment up): 900 mm
Die cushion capacity: 63 tons
Die cuschion stroke: 160 mm
Voltage: 380 V
Main motor power: 45 kW
Total power requirement: 70 kW
Press dimensions: 4300x2500x6000 mm
Weight: 60 tons
