Offer #843

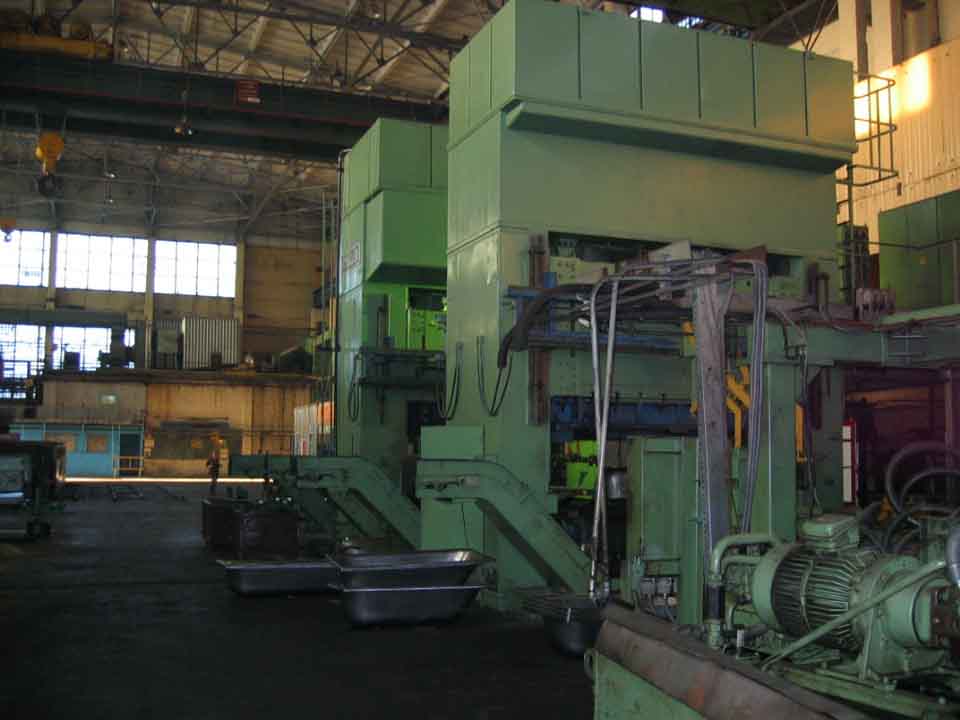

Press lines Lapple for stamping of steel baths
YOM: 1988
Manufacturer: Muller Weingarten
Made in: Germany
Main components of the lines: Press ZE 1000-25 and Press ZEO 630/31
Lines are in a working condition.
Specification of Press ZE 1000-25:
Max force: 1000 ton
Slide stroke: 1000 mm
Table dimensions: 2500x1700 mm
Distance between columns: 2600 mm
Table height over floor: 400 mm
Press height: 7100 mm
Installed power: 150 kW
Press weight: 77100 kg
Specification of Press ZEO 630/31:
Max force: 630 ton
Slide stroke: 900 mm
Table dimensions: 3100x1700 mm
Distance between columns: 3200 mm
Table height over floor: 400 mm
Press height: 6450 mm
Installed power: 110 kW
Press weight: 49600 kg
Complete set of one line:
1. Work-piece loader - 1 piece
2. Hydraulic exhaust Press ZE 1000-25 - 1 piece
3. Unloader of exhaust press - 1 piece
4. Conveyor with ejector - 1 piece
5. Loader of trimming sheet - 1 piece
6. Hydraulic trimming press ZEO 630/31 - 1 piece
7. Unloader of trimming press - 1 piece
8. Conveyor - 1 piece
9. Punching machine - 1 piece
10. Rotator and loading portal - 1 piece
11. Waste conveyor of Press ZE 1000-25 - 2 pieces
12. Waste conveyor - 2 pieces
13. Welding machine - 1 piece
14. Stacking machine - 1 piece
Die tooling for 1700 mm baths:
1. exhaust stamp - 2 pieces
2. trimming stamp - 2 pieces
Die tooling for 1500 mm baths:
1. exhaust stamp - 1 piece
2. trimming stamp - 1 piece
Projected capacity of the line: 400000 baths a year
