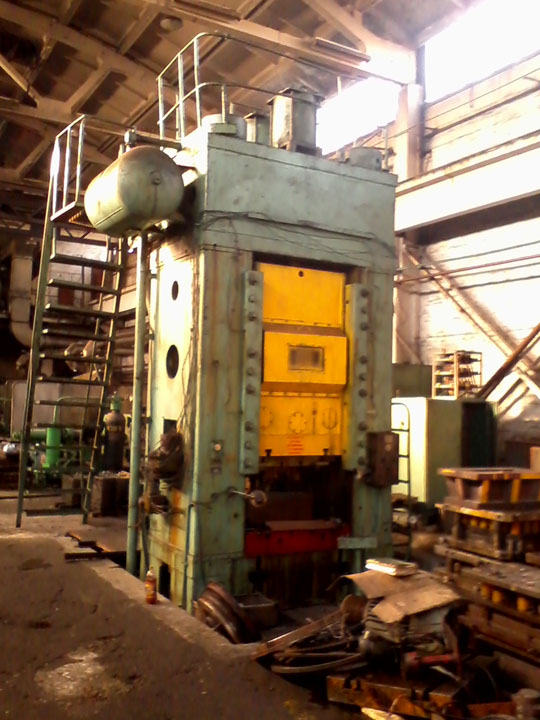

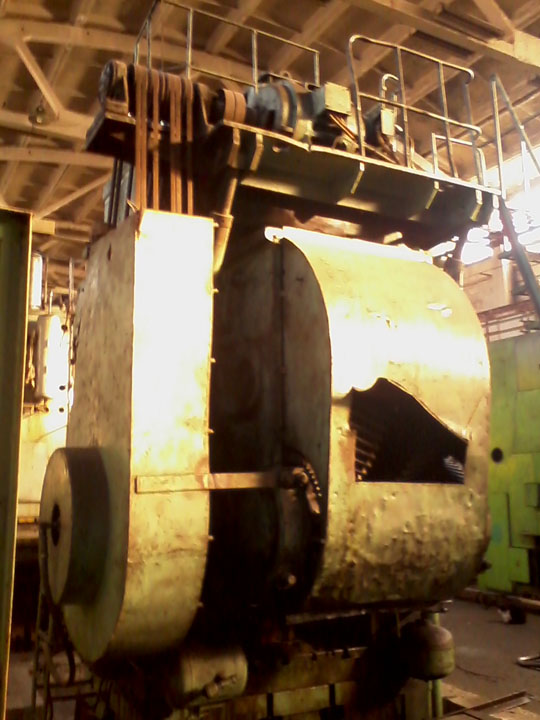

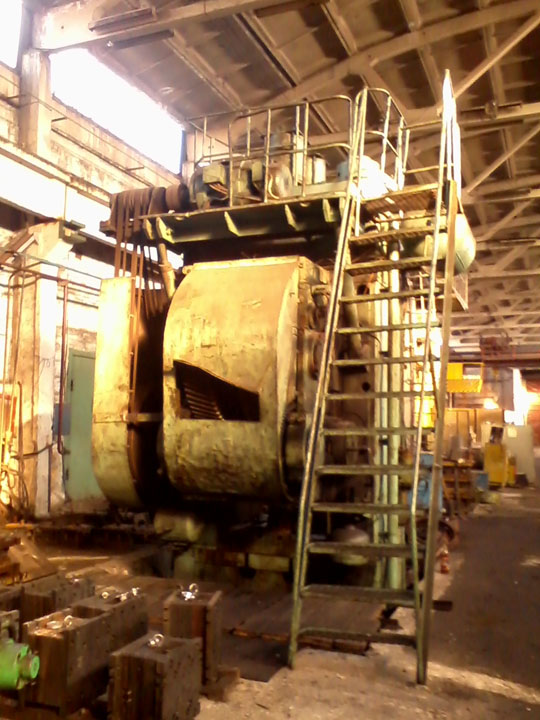

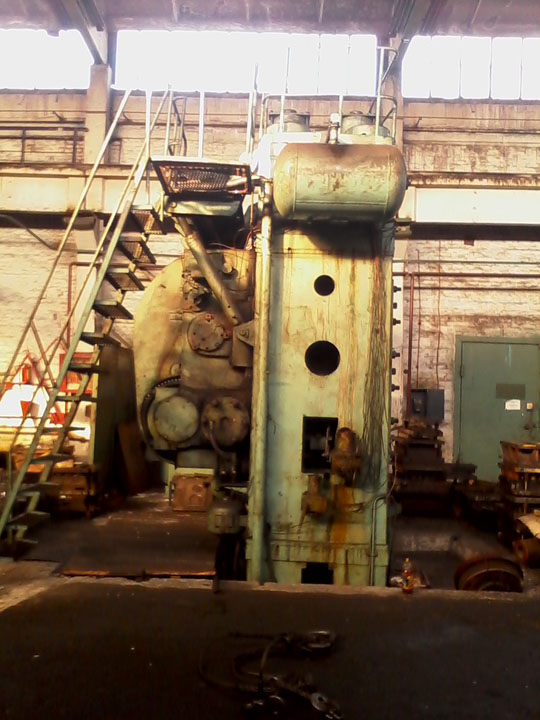

Knuckle joint press VORONEZH K8344

Offer #1198

Knuckle joint press VORONEZH K8344
YOM: 1973
Manufacturer: Voronezh
Made in: Russia

Specification:

Nominal force: 2500 tons
Ram stroke: 190 mm
Number of strokes in 1 minute: 14-20
Shut height: 800 mm
Bolster plate-to-ram adjustable stroke: 20
Ram course in bottom position with max. power: 4,5
Table size: 1250x1400 mm
Ram size:
 -Front-to-back: 900 mm
 -Left-to-right: 1250 mm
Lower knockout:
 -Stroke: 50 mm
 -Force: 100 kN
Upper knockout:
 -Stroke: 40 mm
 -Force: 100 kN
Main motor: 77 kW, 380 V
Overall dimensions: 4770x3050x5890 mm
Weight: 97715 kg
