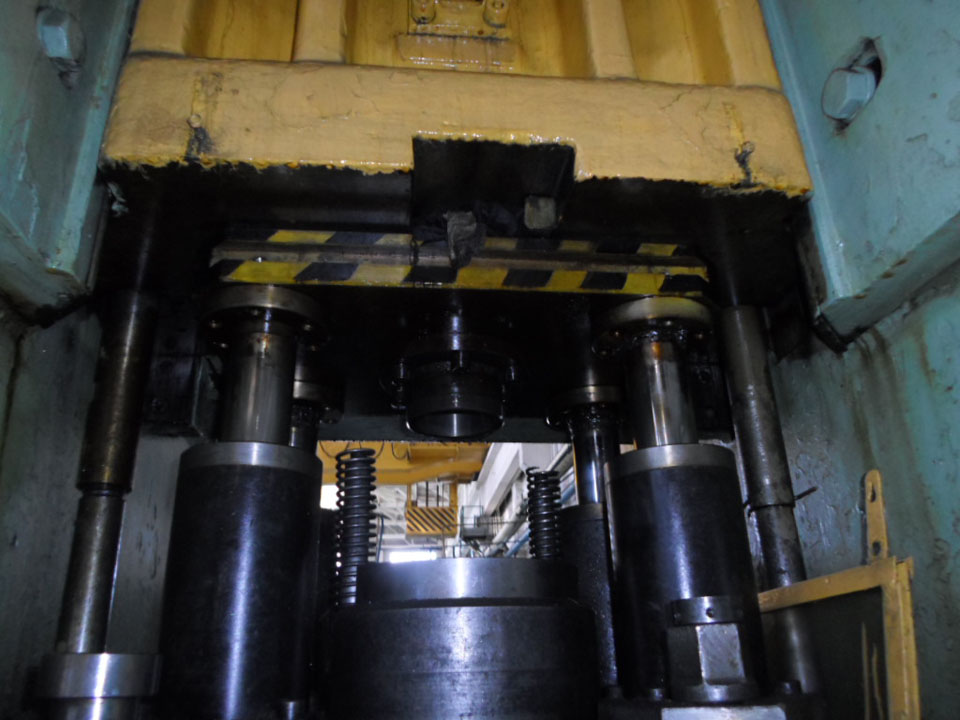

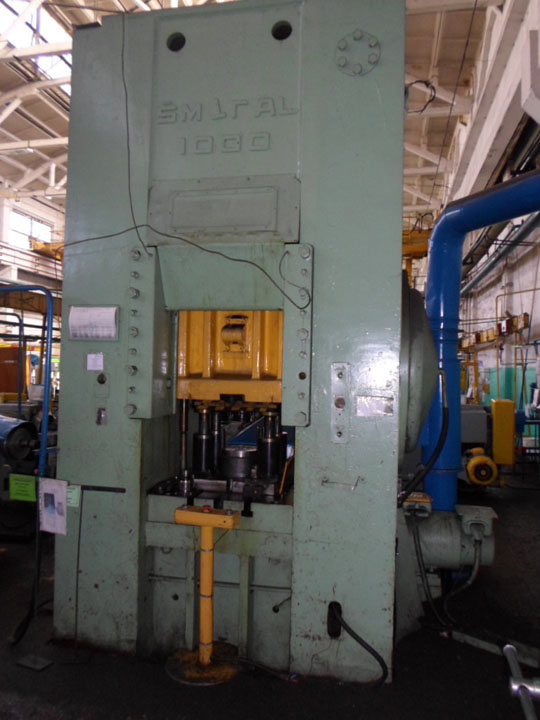

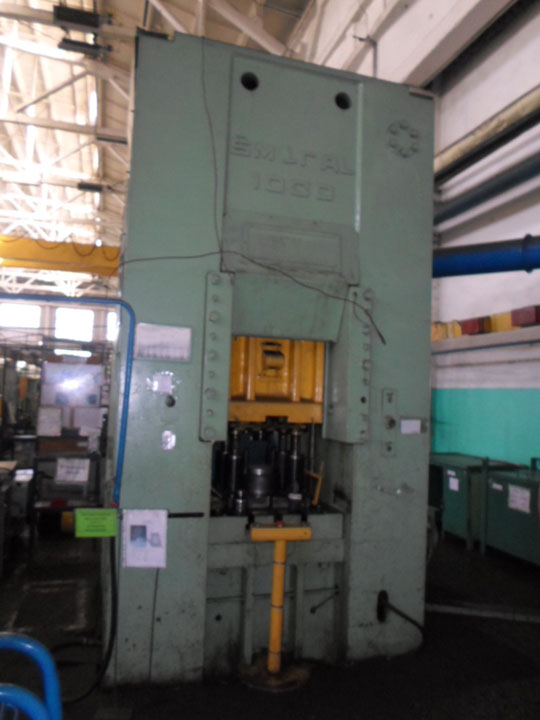

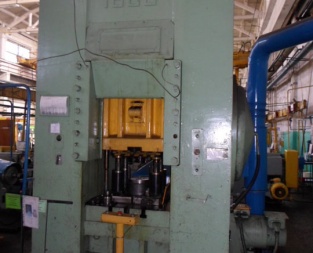

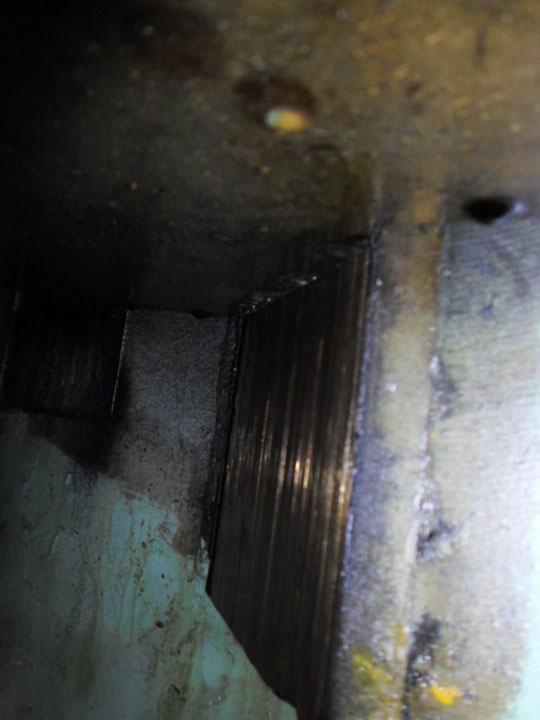

Knuckle joint press SMERAL LL1000A

Offer #1411

Knuckle joint press SMERAL LL1000A
YOM: 1979
Manufacturer: Smeral
Made in: Czech Republic

Specification:

Capacity: 1000 tons
Stroke: 140 mm
Number of strokes: 36/min
Max. distance between ram and table: 630 mm
Width of working area between rods: 740 mm
Table plate size: 910x920 mm
Ram adjustment: 15 mm
Stroke of lower ejector: 140 mm
Main motor power: 28 kw
Rpm of main motor: 1450 U/min
Total power requirement: 30 kW
Air pressure needed: 6 at
Dimensions of machine (length x width x height): 2100x2500x4700 mm
Height above floor: 3800 mm
Total weight of machine: 31000 kg
