Offer #1046

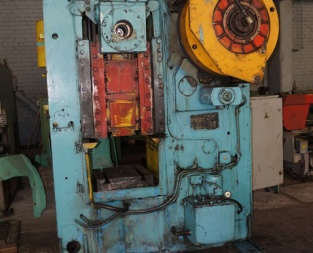

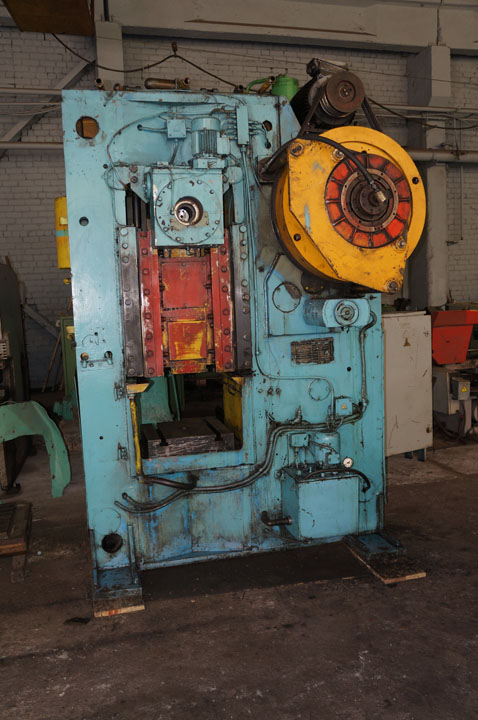

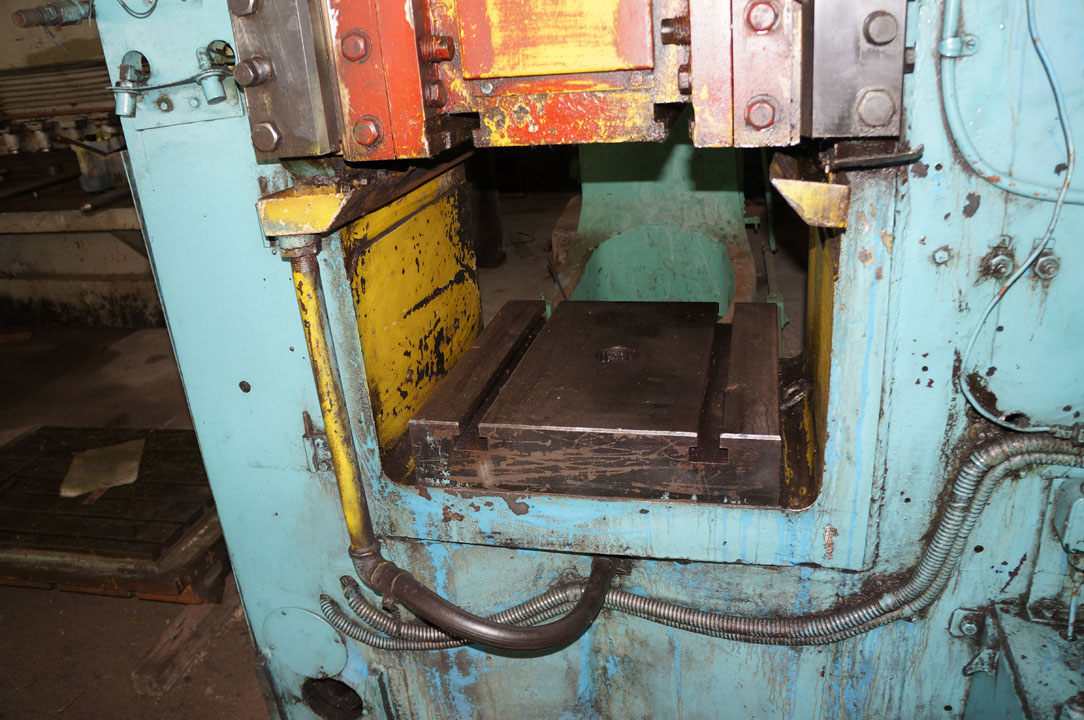

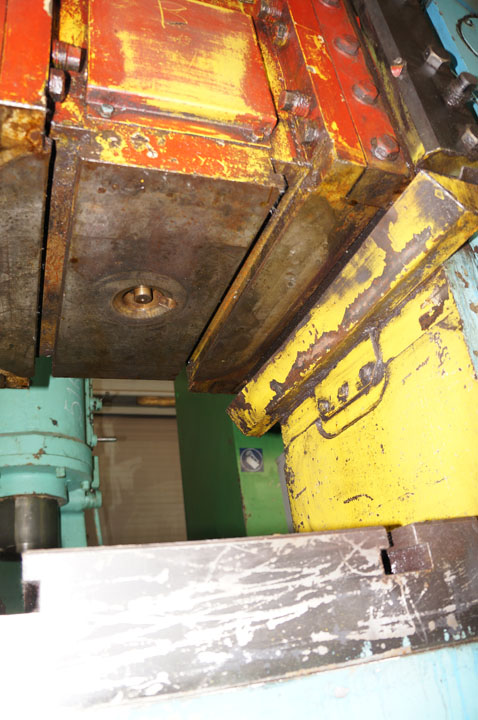

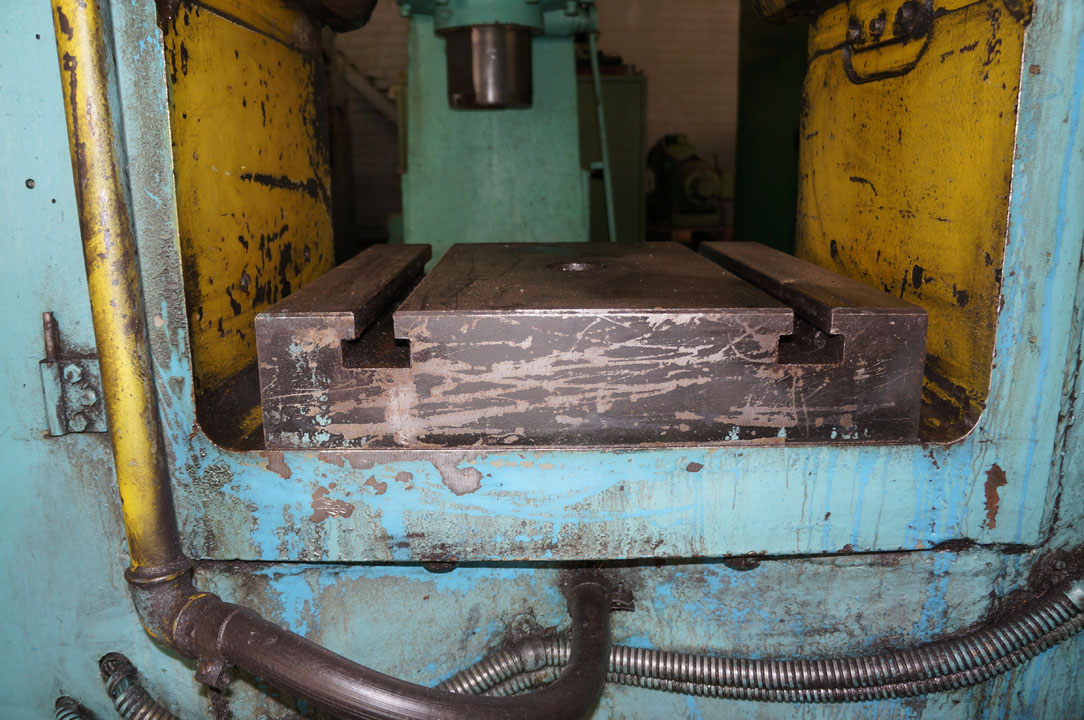

Knuckle joint press PRESMASH KT8336
YOM: 1997
Manufacturer: Presmash
Made in: Ukraine
Single-action cold stamping crank press KT8340. Design of the press provides the ability to install automatic mechanism of material feeding. To ensure pressing of the sheet work-piece at an extract and ejection of the finished product from a die after the technological operation. Press can be equipped with a pneumopillow.
Press is in working condition.
Specification:
Nominal pressing force: 400 tons
Slide stroke: 130 mm
Slide stroke number in 1 min: 50
Distance between a plate under a stamp and slider: 475 mm
Adjustment of the distance between the bolster plate and the slide: 12 mm
Dimensions of the table: 500x500 mm
Dimensions of the slider: 500x500 mm
Voltage: 50 Hz, 380 V
Motor capacity: 25 kW
Machine dimensions: 2120x1435x2860 mm
Total weight: 9100 kg
