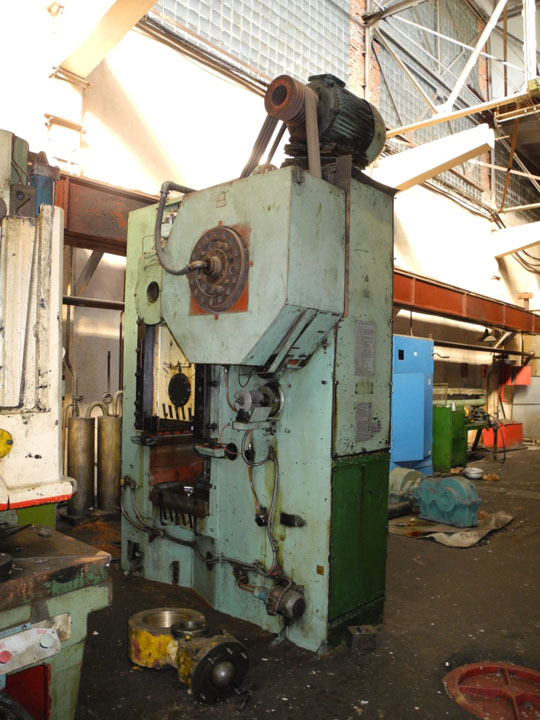

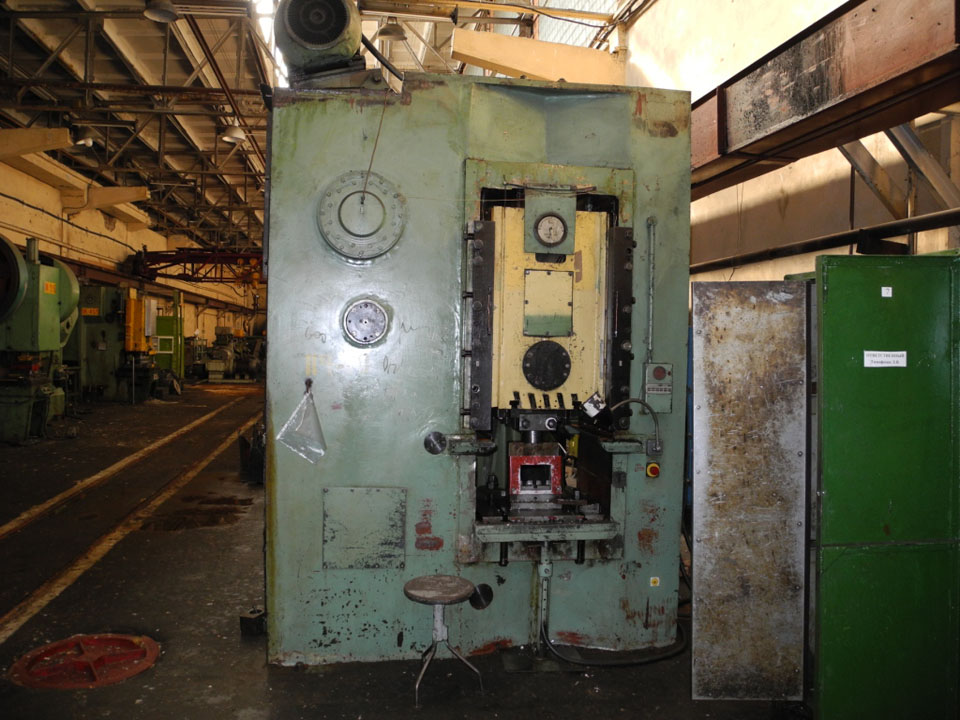

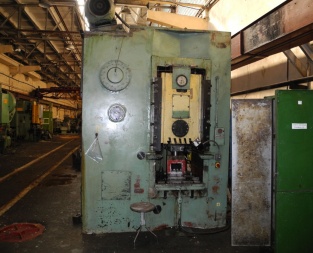

Knuckle joint press KUZLITMASH KB8338

Offer #1044

Knuckle joint press KUZLITMASH KB8338
YOM: 1987
Manufacturer: Kuzlitmash Plant
Made in: Russia

Specification:

Nominal pressing force: 630 tons
Slide stroke: 150 mm
Slide stroke number in 1 min: 40
Distance between a plate under a stamp and slider: 560 mm
Adjustment of the distance between the bolster plate and the slide: 15 mm
Stroke of bottom ejector: 150 mm
Stroke of upper ejector: 10-15 mm

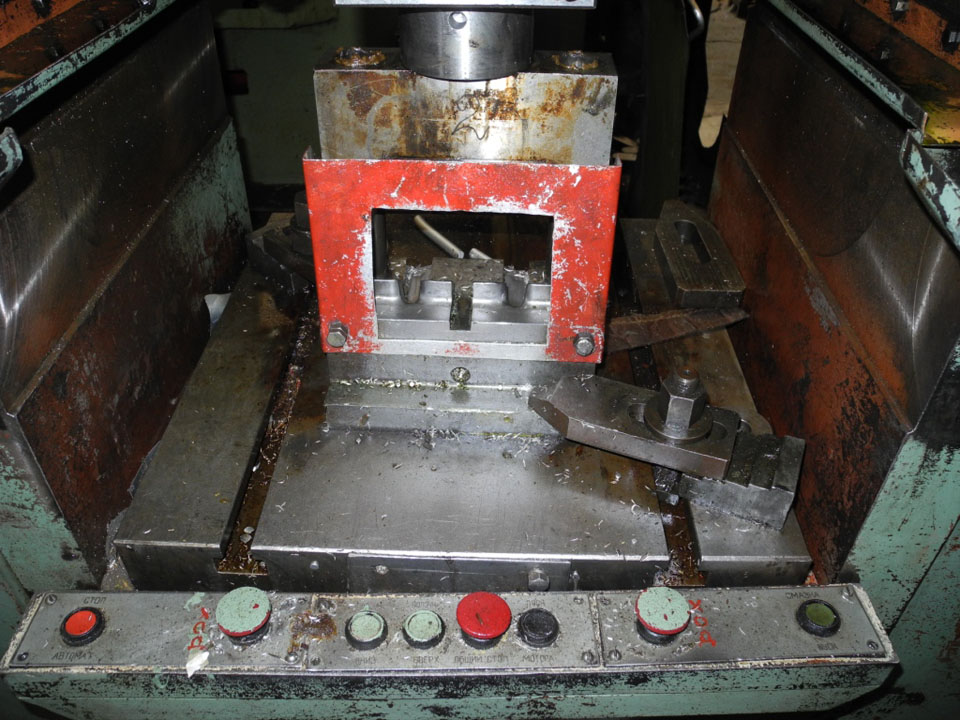

Table size: 630x800 mm
Voltage: 50 Hz, 380 V
Motor capacity: 21 kW
Machine dimensions: 1700x1600x3000 mm
Total weight: 13610 kg
