Knuckle joint press K8338

Offer #1145

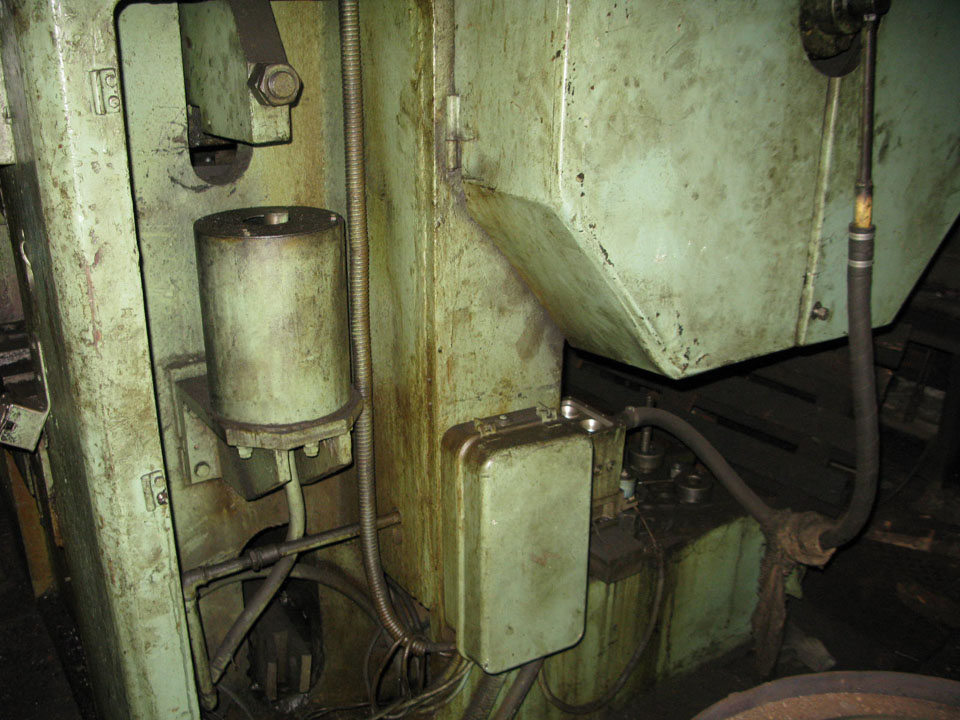

Knuckle joint press K8338
YOM: 1973
Manufacturer: Barnaul
Made in: Russia

Specification:

Nominal effort: 630 tons
Ram stroke: 150 mm
Number of strokes in 1 minute: 40
Shut height: 420 mm
Stamping area: 560 mm
Stamping area adjustment: 15 mm
Table size: 630x630 mm
Ram dimension front-back: 500 mm
Lower knockout:
  -Stroke: 90 mm
  -Force: 200 kN
Upper knockout:
  -Stroke: 16 mm
  -Force: 60 kN
Main drive motor power: 21 kW
Overall dimensions: 2214x1485x3610 mm
Weight: 13575 kg
