Offer #1987

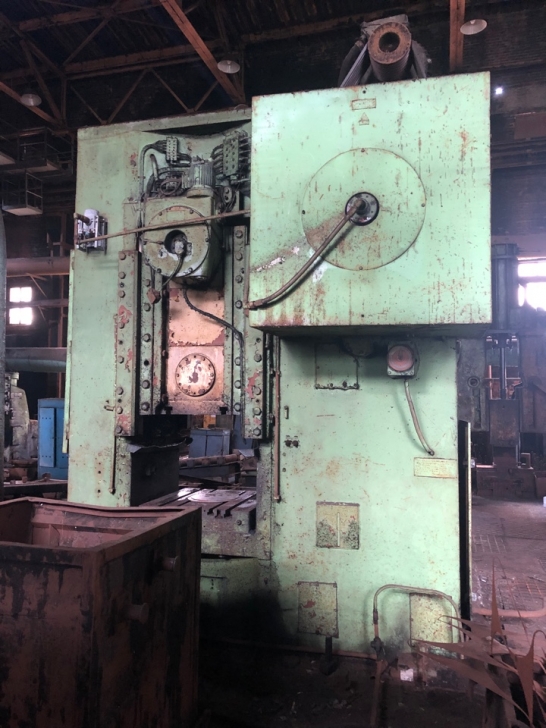

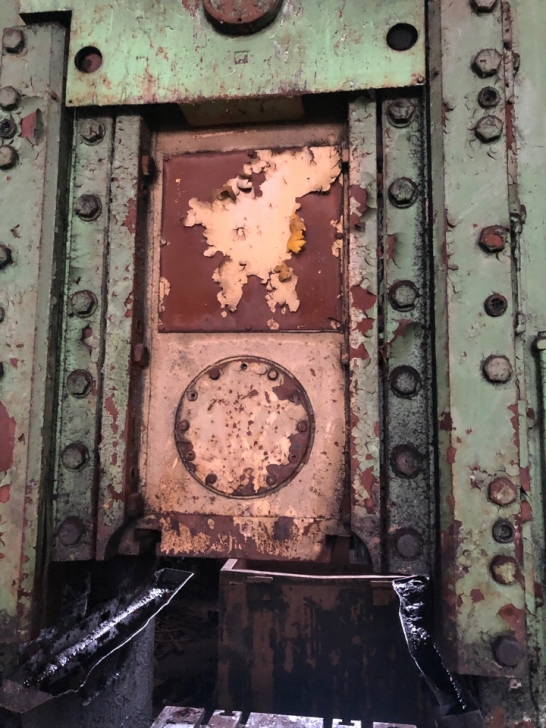

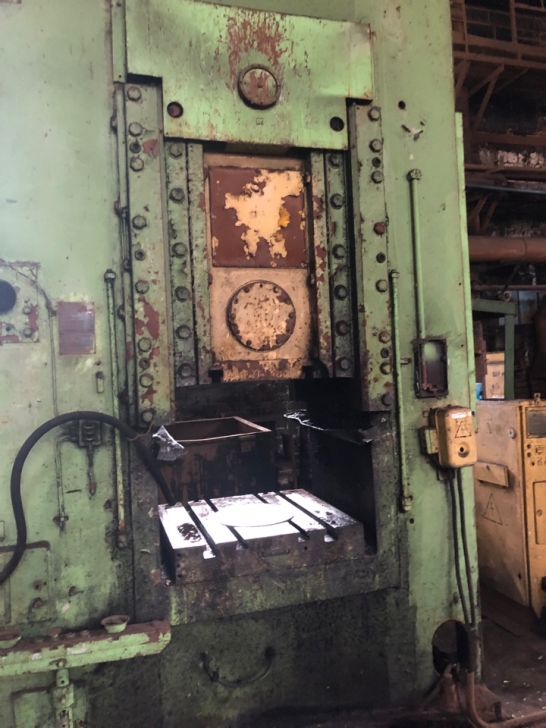

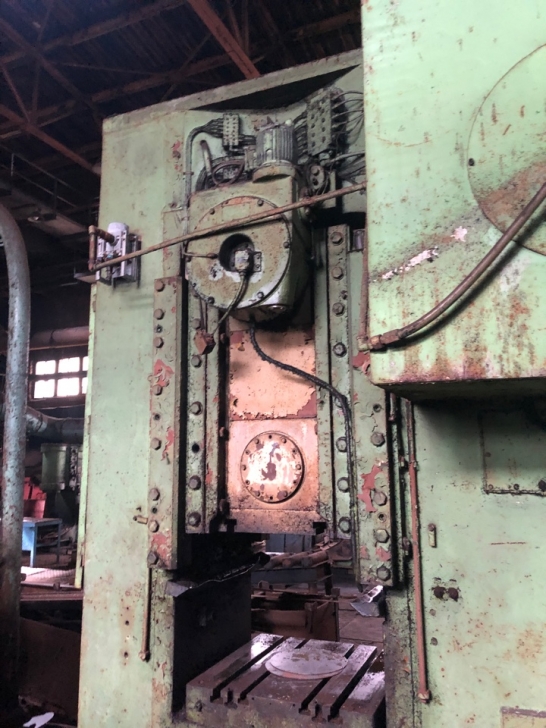

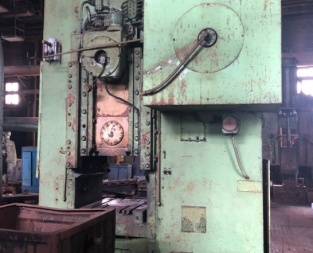

Knuckle joint press BARNAUL KB8340B
YOM: 1991
Manufacturer: Barnaul
Made in: Russia
Specification:
Nominal effort: 1000 tons
Slide stroke: 170 mm
Strokes per 1 min: 32
Shut height: 470 mm
Bolster plate-to-ram adjustable stroke: 16
Table size: 800x800 mm
Bolster plate thickness: 140 mm
Lower knockout:
-Stroke: 110 mm
-Force: 320 kN
Upper knockout:
-Stroke: 10 mm
-Force: 100 kN
Main motor power: 40 kW, 380 V
Overall dimensions: 2950x1950x4090 mm
Weight: 26 tons
