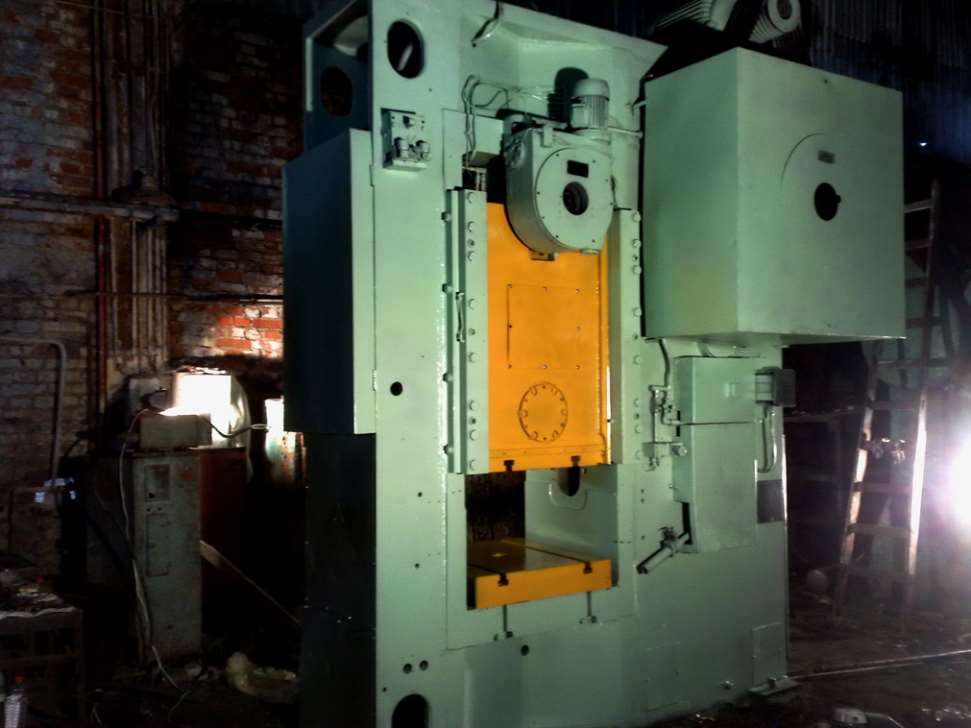

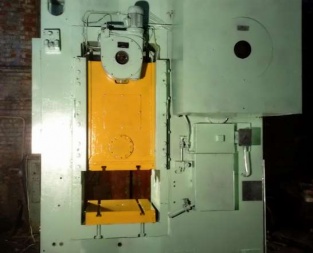

Knuckle joint press BARNAUL KB8340

Offer #693

Knuckle joint press BARNAUL KB8340
YOM: 1987
Manufacturer: Barnaul
Made in: Russia

Specification:

Nominal effort:  1000 ton
Course stroke: 170 mm
Number of strokes in a minute: 32
Shut height: 470 mm
Bolster plate-to-ram adjustable stroke: 16
Table size: 800x800 mm
Bolster plate thickness: 140 mm
Lower knockout:
 -Stroke: 110 mm
 -Force: 320 kN
Upper knockout:
 -Stroke: 10 mm
 -Force: 100 kN
Main motor : 40 kW 380 V
Overall dimensions: 2950x1950x4090 mm
Weight: 26 ton
