Knuckle joint press BARNAUL KB8340

Offer #562

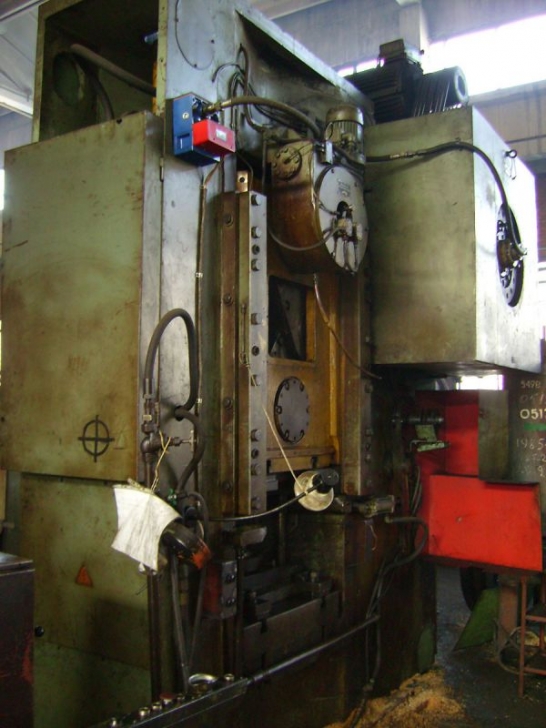

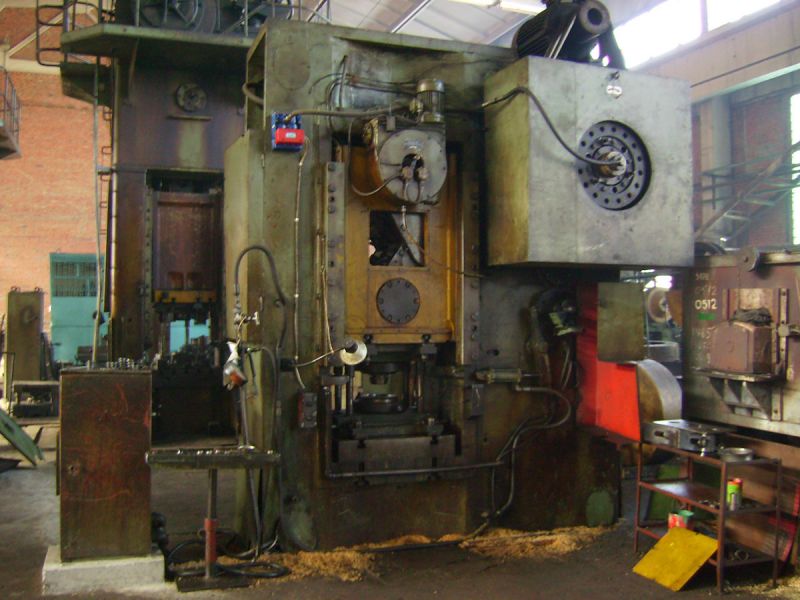

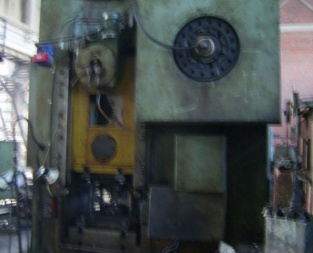

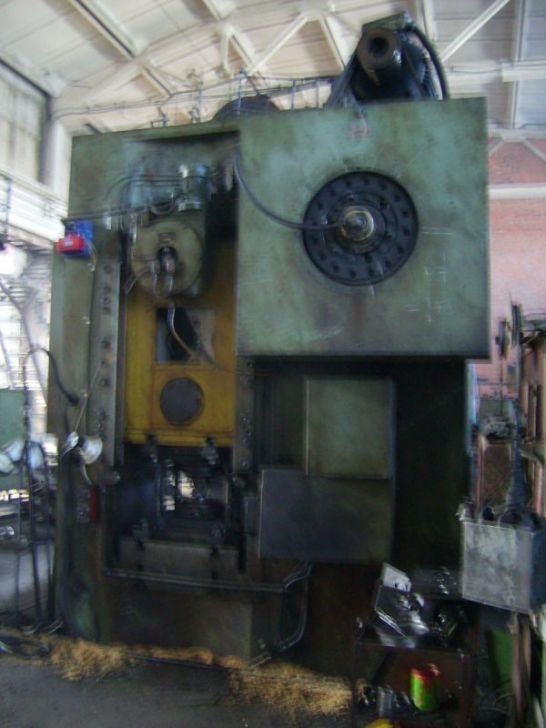

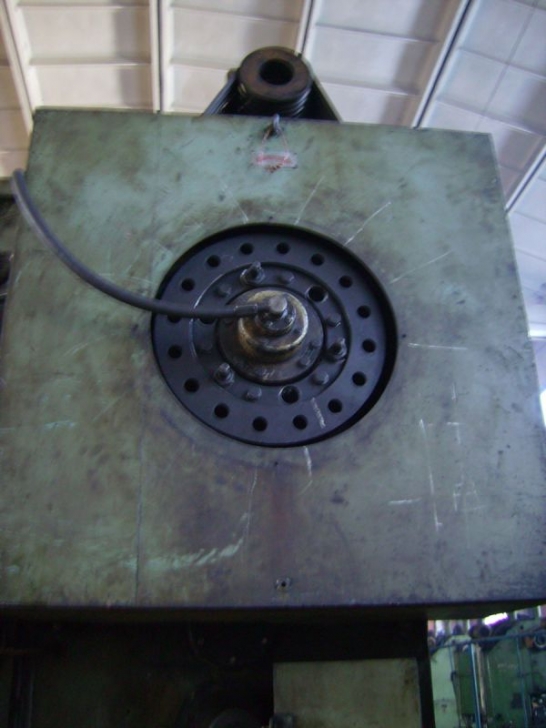

Knuckle joint press BARNAUL KB8340
YOM: 1983
Made in: Russia
Manufacturer: Barnaul

The press is in working condition.

Specification:

Nominal effort:  1000 ton
Slide stroke: 170 mm
Strokes per 1 min: 32
Shut height: 470 mm
Bolster plate-to-ram adjustable stroke: 16
Table size: 800x800 mm
Bolster plate thickness: 140 mm
Lower knockout:
 -Stroke: 110 mm
 -Force: 320 kN
Upper knockout:
 -Stroke: 10 mm
 -Force: 100 kN
Main motor power : 40 kW 380 V
Overall dimension: 2950x1950x4090 mm
Weight: 26 ton
