Offer #1935

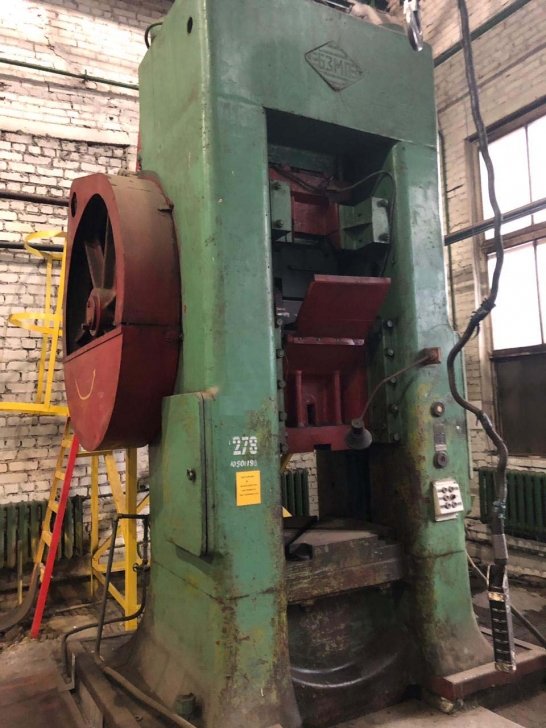

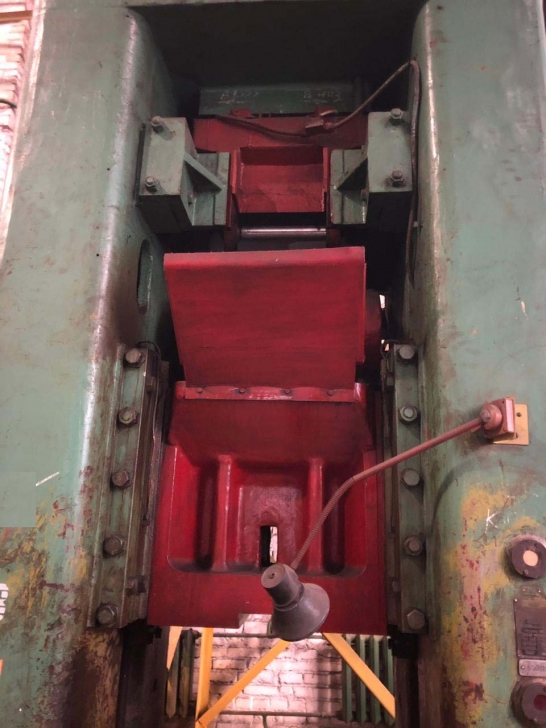

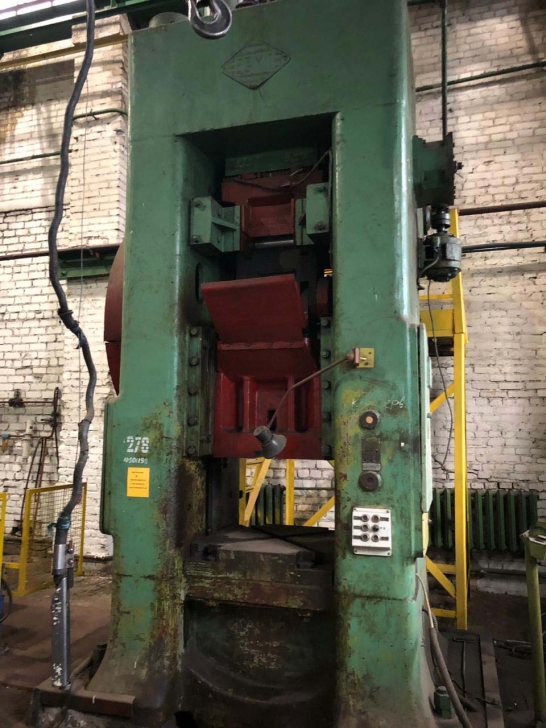

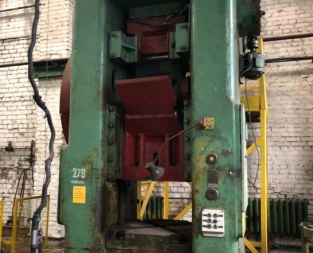

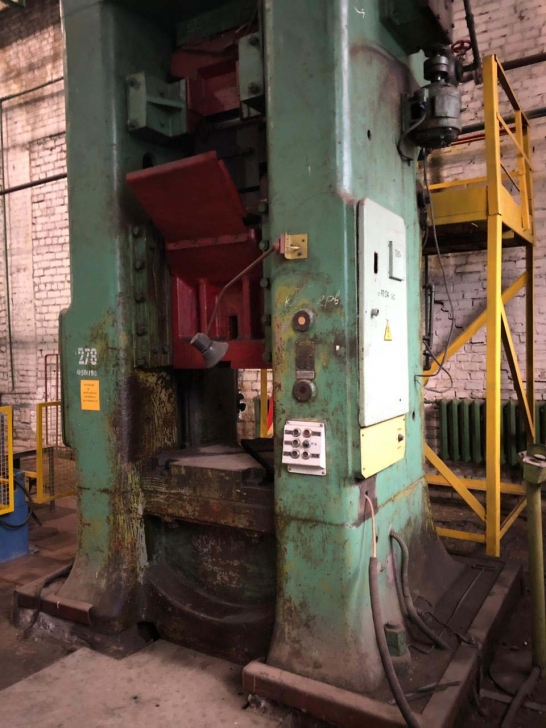

Knuckle joint press BARNAUL K846B
Manufacturer: BARNAUL
Made in: Russia
Specification:
Pressure: 800 tons
Number of strokes per minute: 33
Slide stroke: 160 mm
Adjustment of rod length: 15 mm
Closed height: 650 mm
Table size: 860х840 mm
Table size: 860х840 mm
Max. distance between table and slide in its lower position: 630 mm
Distance between guides: 670 mm
Height of a table above floor: 700 mm
Main motor power: 28 kW
Main motor power: 28 kW
Press dimensions:
-Left-to-right: 2350 mm
-Front-to-back: 2300 mm
-Height: 4290 mm
Press weight: 23 tons
