Offer #1905

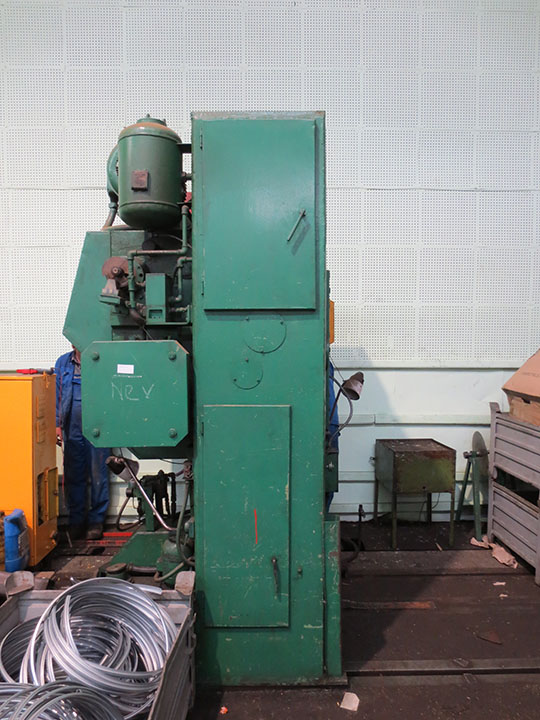

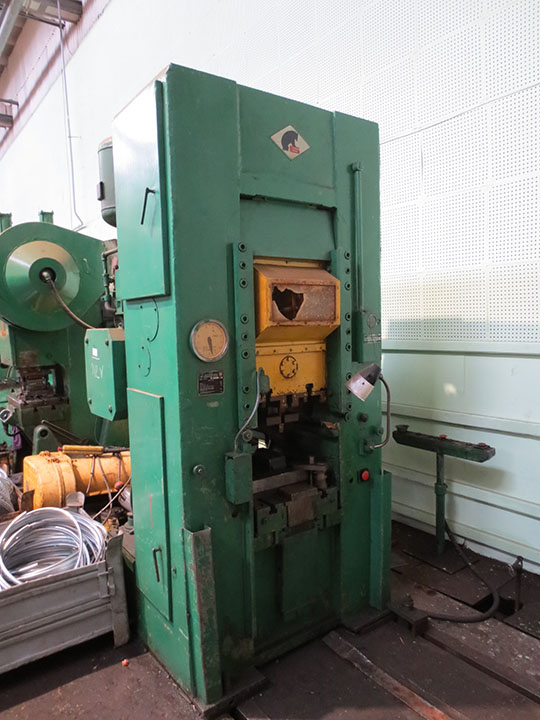

Knuckle joint press BARNAUL K8336
YOM: 1977
Manufacturer: Barnaul
Made in: Russia
Specification:
Nominal force: 4000 kN
Ram stroke: 130 mm
Number of continuous strokes per minute: 50
Stroke of ram to its utmost lower position: 1,6 mm
Distance between bolster plate and ram in its lower position at upper position of adjustment: 375 mm
Adjustable distance between bolster plate and ram: 12 mm
Bolster plate dimensions:
-From left to right: 500 mm
-From front to back: 500 mm
Ram dimensions from front to back: 400 mm
Ejector stroke:
-Upper: 16 mm
-Lower: 80 mm
Ejector force:
-Upper: 40 kN
-Lower: 120 kN
Main drive power: 12 kW
Press dimensions:
-From left to right: 1940 mm
-From front to back: 1240 mm
Height above floor level: 2800 mm
Weight: 8425 kg
