Offer #1548

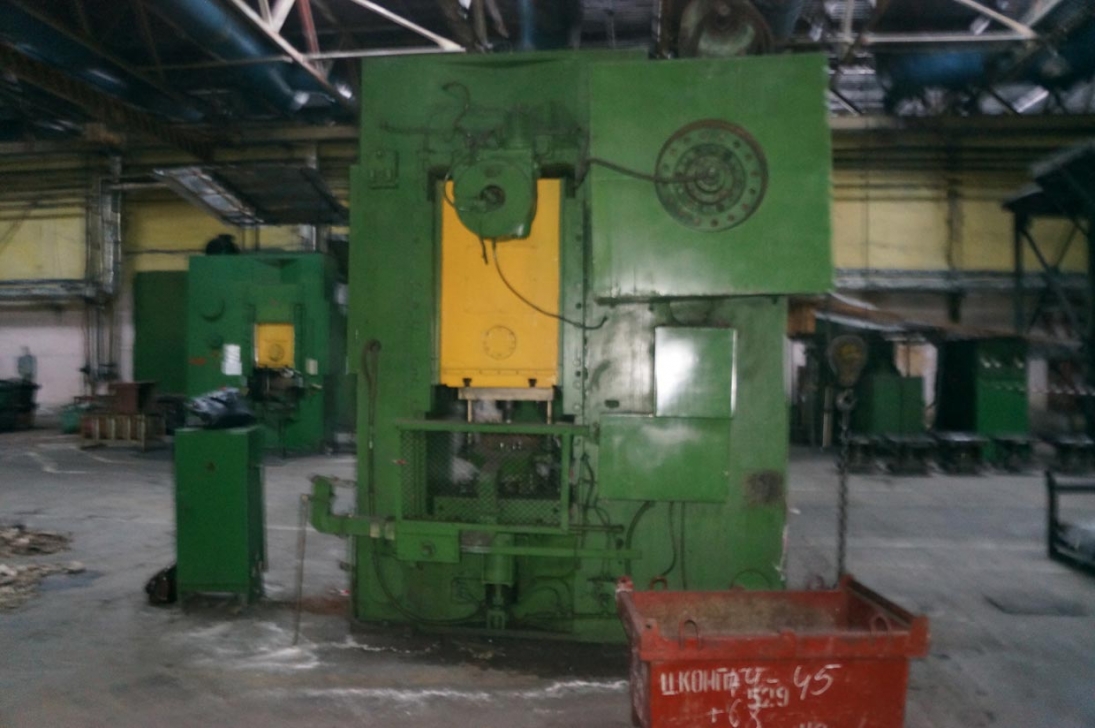

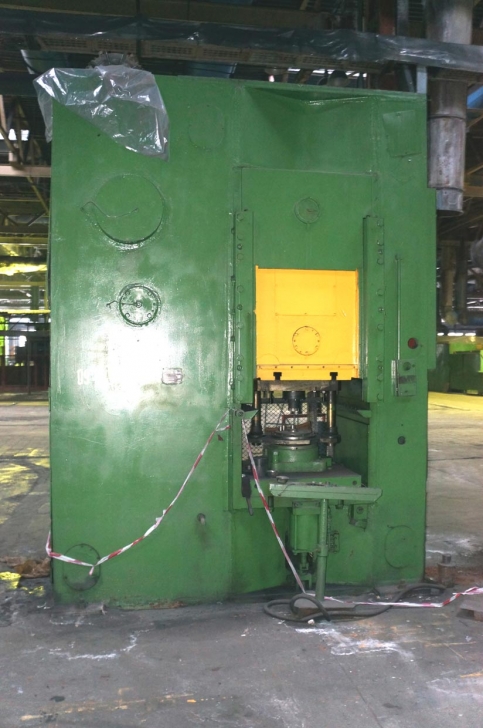

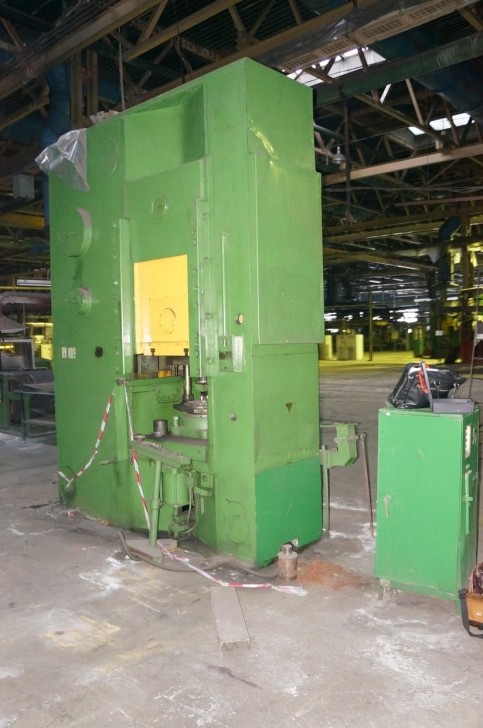

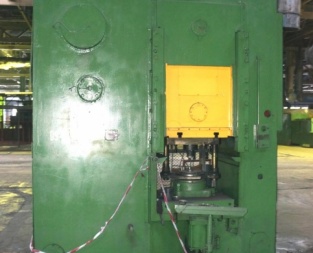

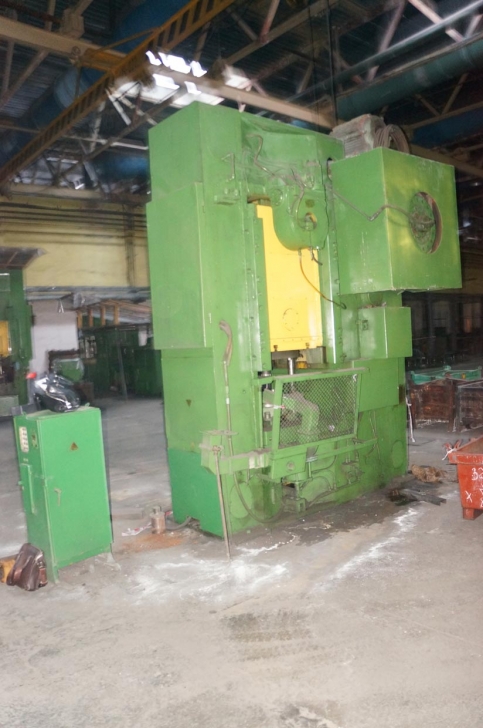

Knuckle joint cold extrusion press BARNAUL KA0032
YOM: 1983
Made in: Russia
Manufacturer: Barnaul
Press has longer slide stroke and shut-height than KB0032 model.
Specification:
Rated capacity on the slide: 160 tons
Slide stroke: 320 mm
Continuous strokes of the slide: 25/1 min
Adjustment of the tool's height: 16 mm
Maximum tools shut-height: 630 mm
Dimensions of the table:
-Length: 800 mm
-Width: 800 mm
Dimensions of the slide:
-Left-to-right: 730 mm
-Front-to-back: 655 mm
Dimensions of the bolster plate:
-Left-to-right: 750 mm
-Front-to-back: 750 mm
Max. work-piece height: 60 mm
Max. work-piece diameter: 80 mm
Main drive electric motor
-Power: 37 kW
-Rotation frequency: 980 rpm
Overall dimensions:
-Left-to-right: 4050 mm
-Front-to-back: 3040 mm
-Height: 5410 mm
-Height above floor level: 5070 mm
Weight: 22000 kg
