Offer #2153

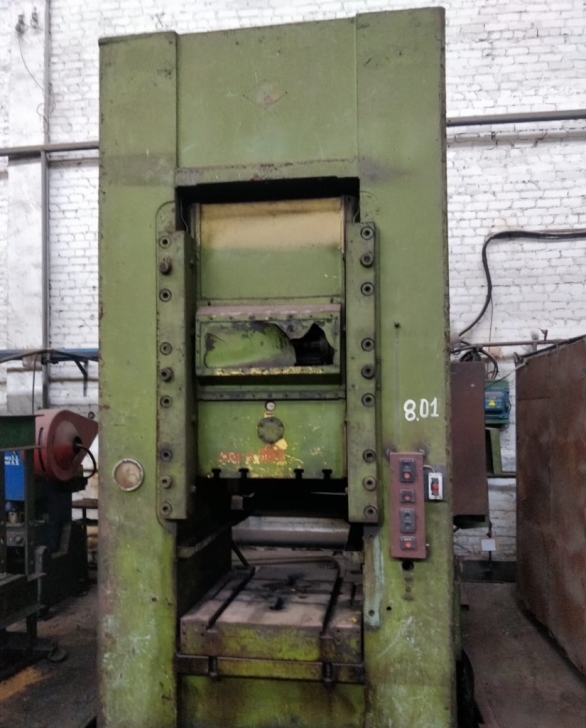

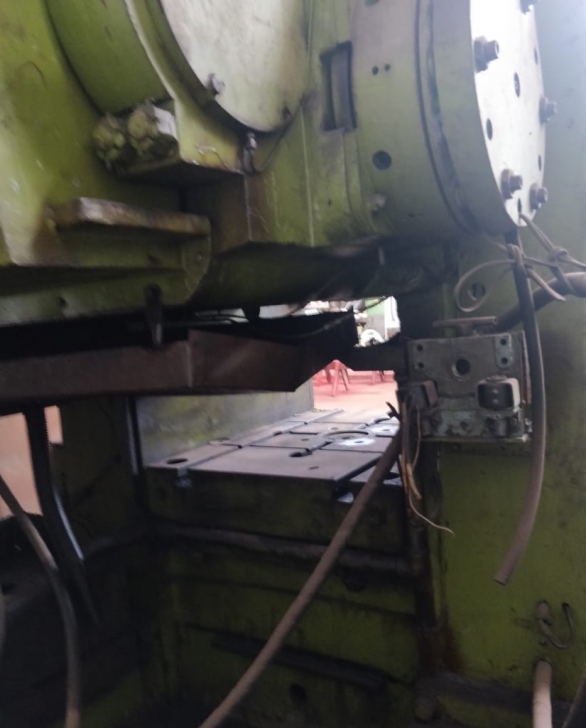

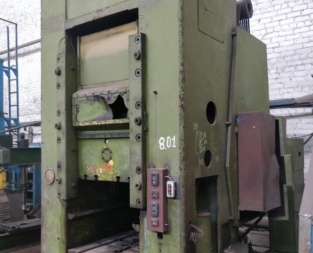

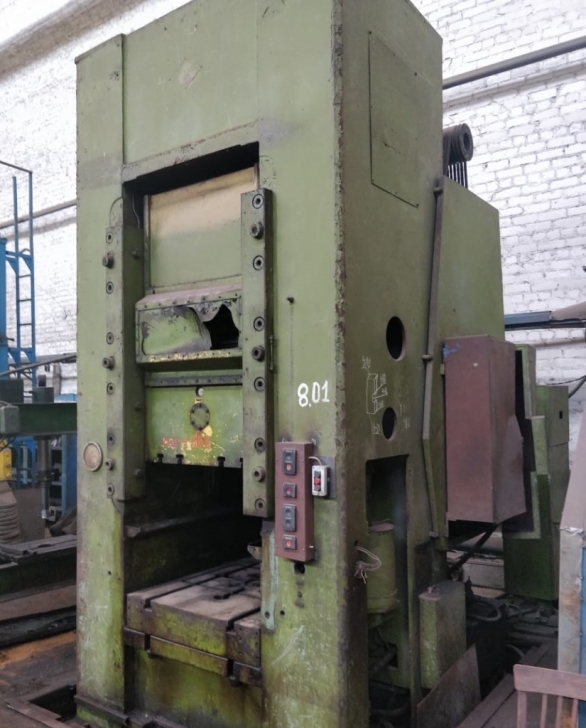

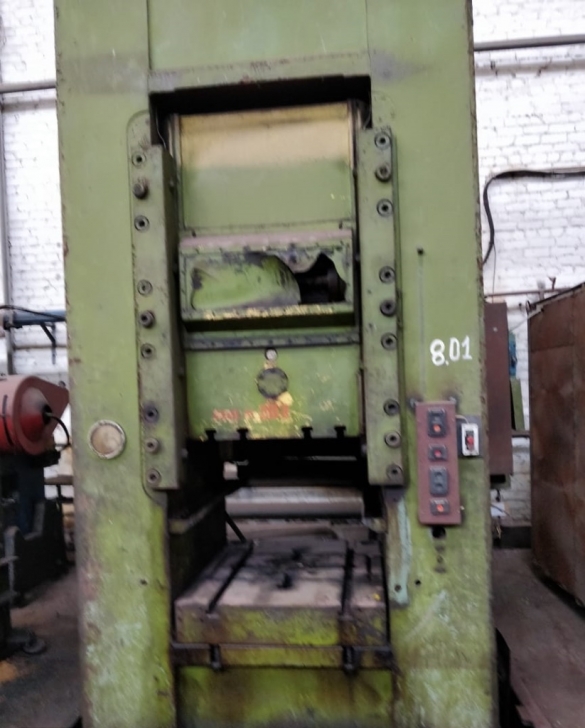

Knuckle joint cold extrusion press BARNAUL K0036
Made in: Russia
Manufacturer: BARNAUL
Specification:
Max. capacity: 400 tons
Slide stroke: 240 mm
Slide strokes per 1 min: 25
Bolster plate to ram adjustment stroke: 20 mm
Shut height: 750 mm
Bed dimensions: 1250x1250 mm
Bolster plate thickness: 200 mm
Lower ejection stroke: 240 mm
Lower ejection force: 50 tons
Upper ejection stroke: 20 mm
Upper ejection force: 16 tons
Dimensions: 2500x2260x4515 mm
Total weight: 36690 kg
