Offer #1940

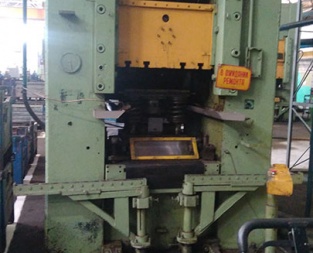

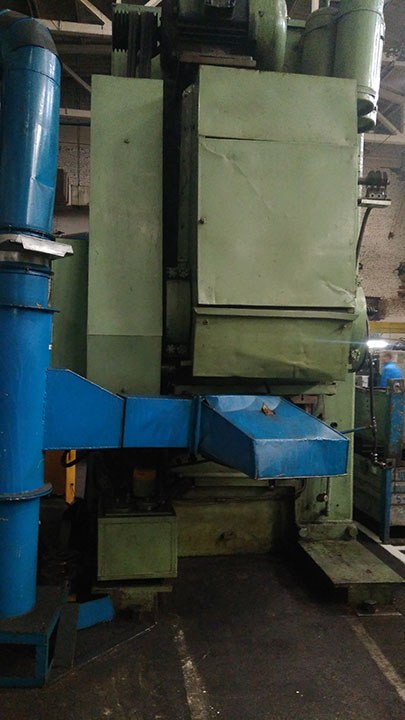

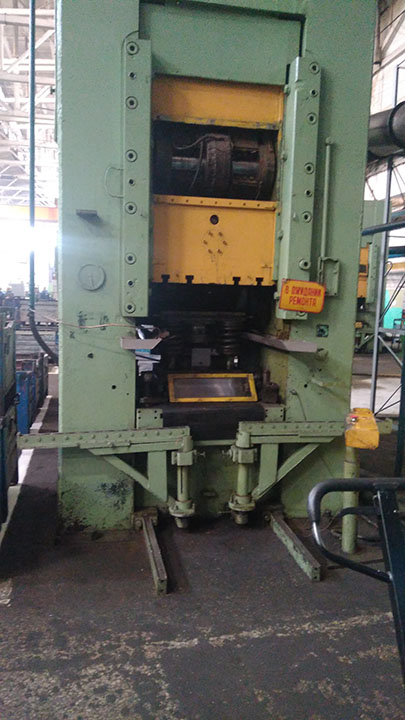

Knuckle joint cold extrusion press AC-5100
YOM: 1982
Made in: Russia
Specification:
Capacity of press: 4000 kN
Slide stroke: 240 mm
Frequency of continuous press strokes per minute: 25
Number of single press strokes per minute: 16
Press stroke path till its extreme position, where it develops capacity of press: 36 mm
Distance between die bed and press slide in its lower position with up position of adjustment: 750 mm
Dimension of distance adjustment between the bed and press slide: 16 mm
Slide stroke: 240 mm
Proportions of bed:
-From left to right: 1000 mm
-From the front to back: 1250 mm
Proportions of press slide:
-From left to right: 900 mm
-From the front to back: 940 mm
Thickness of die bed: 160 mm
Overhead ejection stroke: 16 mm
Overhead ejection force: 160 kN
Inferior ejection stroke: 140 mm
Inferior ejection force: 500 kN
Rigidity: 3600 kN
Overall dimensions of press:
-From left to right: 2260 mm
-From the front to back: 2500 mm
-Height: 4365 mm
Height of press above the floor: 4400 mm
Mass of press without base and electric equipment: 36510 kg
