Offer #2209

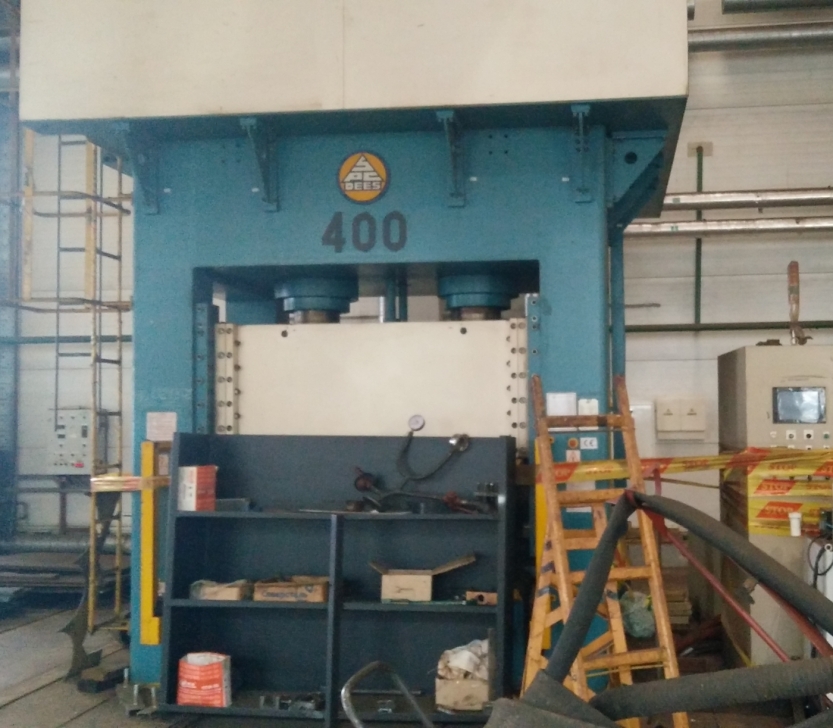

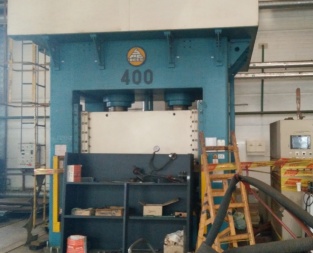

Hydraulic sheet metal forming press DEES HD-400
YOM: 2008
Manufacturer: DEES Hydraulics Industrial Co. Ltd.
Made in: Taiwan
Press was never used. Condition is like new one.
It comes with two bending and forming molds.
Specification:
Slide capacity: 400 tons
Slide stroke: 600 mm
Open height: 800 mm
Shut height: 200 mm
Max. pressure: 234 kg/cm2 (slide)
Slide table size: 2000x1800 mm
Bolster size: 2000x1800 mm
Slide approach speed: 190 mm/sec
Slide return speed: 190 mm/sec
Slide pressing speed (55%): 3~50 mm/sec
Slide pressing speed (100%): 3~25 mm/sec
Moving bolster size: 2000×1800 mm
Max. moving bolster load: 10 tons
Moving bolster speed: 70 mm/sec (approx.)
Moving bolster direction: front
Moving bolster travel: 3000 mm
Main power: 220V / 50 Hz / 3 PH
Main motor: AEEJE-SA 150HP × 6P
Pilot motor: AEEFSA 15HP × 6P
Main pump 1: A7VO-500-LRDN3/63R-PPH02
Main pump 2: T6C-010-1L03-B1
Pilot pump 1: 150T-116-L-R+PV2R1-31
Pilot pump 2: 150T-116-L-L+PV2R2-41
Mode of operation: two hands control
Max. mold weight: 10 tons
Max. upper mold weight: 5 tons
Machine weight: 43510 kg
Description:
Press is intended mainly for sheet metal forming. Also possible to do forming, embossing, bending, etc., depending on the design of the molds.
