Offer #908

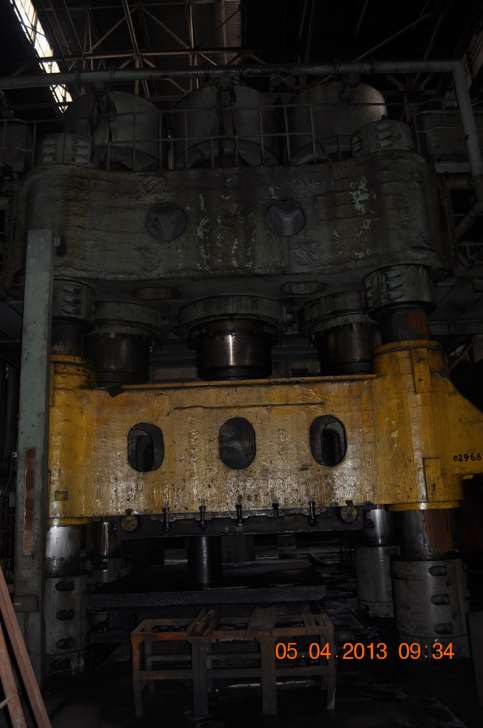

Hydraulic plate metal forming single action press model P3847
YOM: 1976
Manufacturer: TPM-Ryazan
Made in: Russia
Press is designed for plate metal material forming.
Specification:
Nominal force:
-1st stage: 16000 kN
-2nd stage: 31500 kN
-3rd stage: 50000 kN
Slide stroke: 1100 mm
Slide speed:
-Idle down stroke: 150 mm/s
-Working stroke at 1 stage of force: 25,6 mm/s
-Working stroke at 2 stage of force: 12,8 mm/s
-Working stroke at 3 stage of force: 8,5 mm/s
-Return stroke: 100 mm/s
Max distance between table and slide (daylinght): 2300 mm
Table dimensions:
-Left-to-right: 3500 mm
-Front-to-back: 2800 mm
Table stroke: 2850 mm
Table speed: mm/s
-Out of press: 270 mm/s
-Into press: 270 mm/s
Max tolerable at 3 stage of force:
-Left-to-right: 200 mm
-Front-to-back: 100 mm
Nominal pressure of working fluid: 15 MPa
Overall press dimensions:
-Left-to-right: 11600 mm
-Front-to-back: 16000 mm
Height above floor level: 8640 mm
Total power of electric motors: 425 kW
Press weight: 800 ton
