Offer #2083

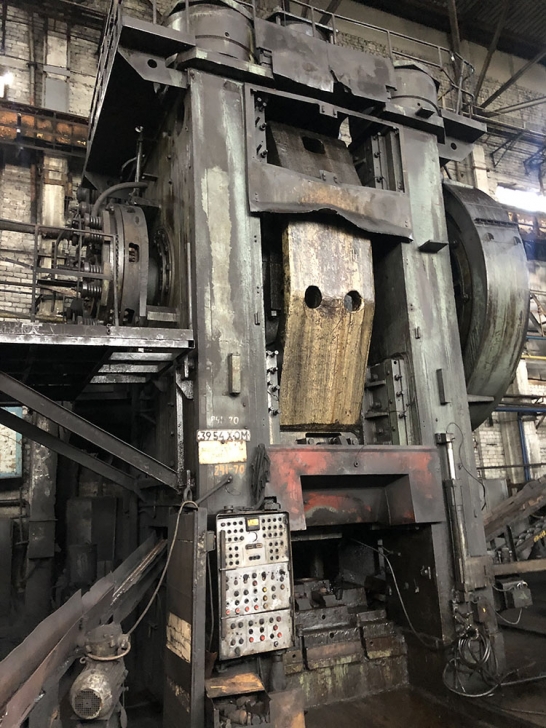

Hot forging press VORONEZH KB8546
YOM: 1986
Manufacturer: Voronezh
Made in: Russia
Specification:
Rated capacity: 40000 kN
Shut height: 1000 mm
Adjustable distance between table and slide: 10 mm
Dimensions of openings in L. H. press side wall:
-Height: 1100 mm
-Width: 1000 mm
Table working surface:
-L-to-R: 1570 mm
-F-to-B: 1620 mm
Slide dimensions:
-L-to-R: 1420 mm
-F-to-B: 1420 mm
Slide stroke: 400 mm
Slide strokes per minute (continuous): 50
Number of pitmans: 2
Number of drive stages: 2
Top ejector mechanism:
-Stroke: 65 mm
-Capacity: 80 kN
Bottom ejector mechanism:
-Stroke: 65 mm
-Capacity: 125 kN
Main drive motor power: 160 kW
Overall dimensions:
-L-to-R: 6228 mm
-F-to-B: 5515 mm
-Height above floor level: 7790 mm
Mass (approximately): 362-5 tons
