Offer #733

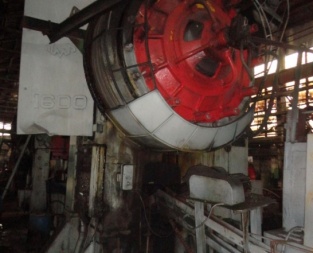

Hot forging press VORONEZH KB8542
YOM: 1983
Country of origin: Russia
Manufacturer: Voronezh
Specification:
Capacity: 1600 ton
Slide stroke: 300 mm
Slide stroke length at maximum force: 0,16 mm
Distance adjustment between table and slider: 10 mm
Slide stroke number in 1 min: 75
Length of a rod: 920 mm
The closed height (the least distance between a table and a slider in his bottom position): 660 mm
Table overall dimensions: 940x1200 mm
Table height above floor level: 450 mm
Slide overall dimensions: 860x910 mm
The size of lateral windows:
-Height: 560 mm
-Width: 600 mm
Main motor: 110 kW
Press overall dimensions:
-Length: 5060 mm
-Width: 3940 mm
-Height above floor level: 5125 mm
Press weight: 120 ton
