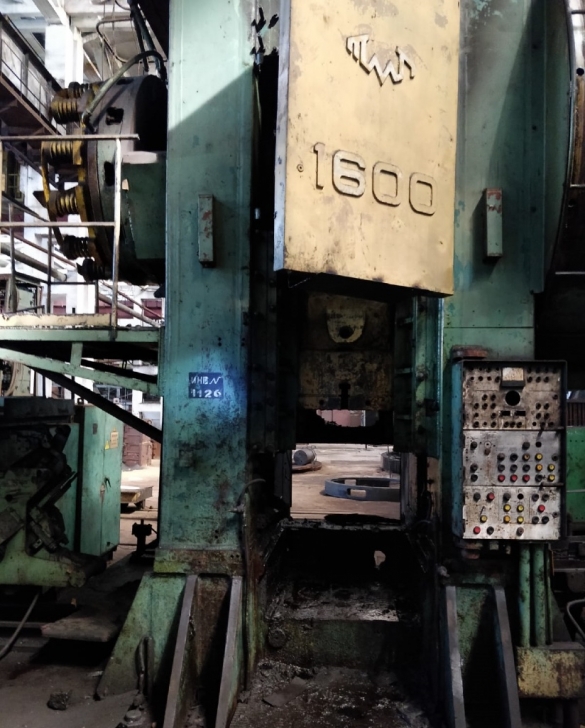

Hot forging press VORONEZH KB8042

Offer #2152

Hot forging press VORONEZH KB8042
YOM: 1986
Manufacturer: Voronezh
Made in: Russia

Specification:

Capacity: 1600 tons
Slide stroke: 300±1 mm
Number of continuous slide strokes per minute: at least 85
Number of single slide strokes per minute: no more than 16
Distance between table and bolster slide plate in its lowest position: 660 mm
Size of distance adjustment between table and slide: 10±1 mm
Upper ejector:
-Stroke: 40±3 mm
-Force: at least 63 kN
Lower ejector:
-Stroke: 32±2 mm
-Force: at least 100 kN
Table dimensions:
-Left-to-right: 1050 mm
-Front-to-back: 1200 mm
Slide dimensions:
-Left-to-right: 860 mm
-Front-to-back: 910 mm
Size of windows in press columns:
-Height: at least 710 mm
-Width: at least 630 mm
Press dimensions:
-Left-to-right: 4850±48 mm
-Front-to-back: 3515±35 mm
Height of the press above floor: 5570±50 mm
Number of motors on the press: 3
Main drive electric motor:
-Power: 90 kW
-Rotation frequency: 720 rpm
Electric motor of adjustment mechanism of closed height:
-Power: 5,5 kW
-Rotation frequency: 735 rpm
Press weight: no more than 115667 kg
