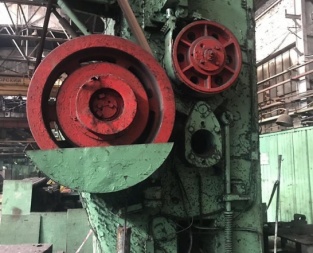

Hot forging press VORONEZH K863

Hot forging press VORONEZH K863

YOM: 1961

Manufacturer: Voronezh Tiazhmechpress

Made in: Russia



It is analogue of K8540 Voronezh press.



Specification:



Capacity: 1000 tons

Slide stroke: 250 mm

Slide stroke number in 1 min: 80

The closed height (the least distance between a table and a slider in its bottom position): 560 mm

Table height adjustment: 15 mm

Distance clear between uprights: 860 mm

Table dimensions:

 -Front-to-back: 990 mm

 -Left-to-right: 500 mm

Slide dimensions:

 -Front-to-back: 720 mm

 -Left-to-right: 720 mm

Electrical motor power: 55 kW

Dimensions: 2800x3255x4975 mm

Press weight: 55 tons



Description:



The mechanical forging press is designed for hot stamping and sizing of ferrous and non-ferrous metal forgings for mass and large lot production. In comparison with air and steam hammers, mechanical forging presses possess higher efficiency and production capacity, especially when rolled shape blanks are used. Forging presses produce parts with smaller machining allowances, have the advantage of noiseless operation, do not produce ground vibrations and do not require massive foundations.
