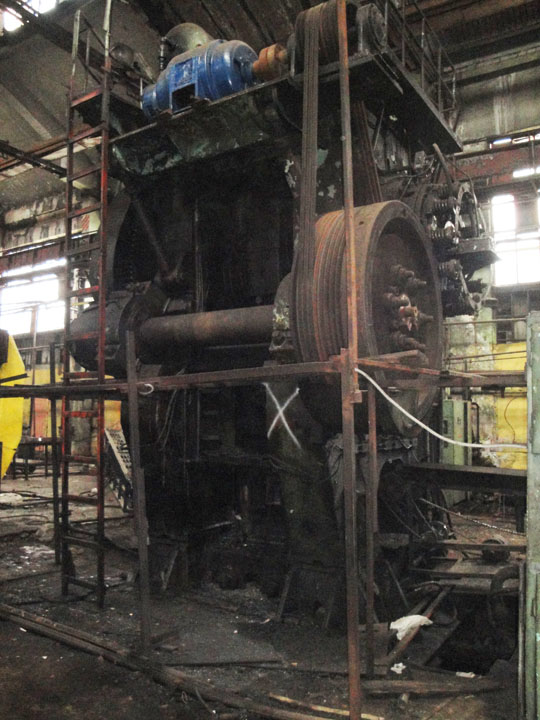

Hot forging press VORONEZH K8544

Offer #1705

Hot forging press VORONEZH K8544
YOM: 1975
Manufacturer: Voronezh
Made in: Russia

Specification:

Rated capacity: 2500 tons
Shut height: 900 mm
Adjustable distance between table and slide: 10 mm
Dimensions of openings in L. H. press side wall:
 -Height: 900 mm
 -Width: 700 mm
Table working surface:
 -L-to-R: 1200 mm
 -F-to-B: 1400 mm
Slide dimensions:
 -L-to-R: 1070 mm
 -F-to-B: 1120 mm
Slide stroke: 350 mm
Slide strokes per minute (continuous): 60
Number of pitmans: 2
Number of drive stages: 2
Top ejector mechanism:
 -Stroke: 50 mm
 -Capacity: 63 kN
Bottom ejector mechanism:
 -Stroke: 50 mm
 -Capacity: 100 kN
Main drive motor power: 90 kW
Overall dimensions:
 -L-to-R: 5585 mm
 -F-to-B: 3750 mm
 -Height above floor level: 6800 mm
Mass (approximately): 183-5 tons
