Offer #1653

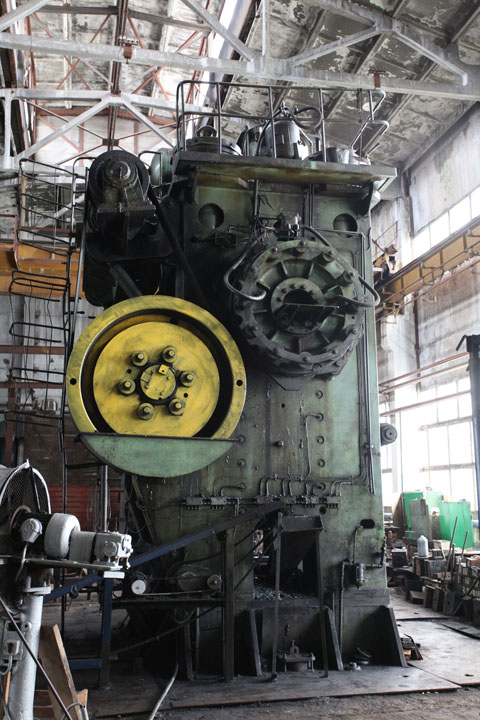

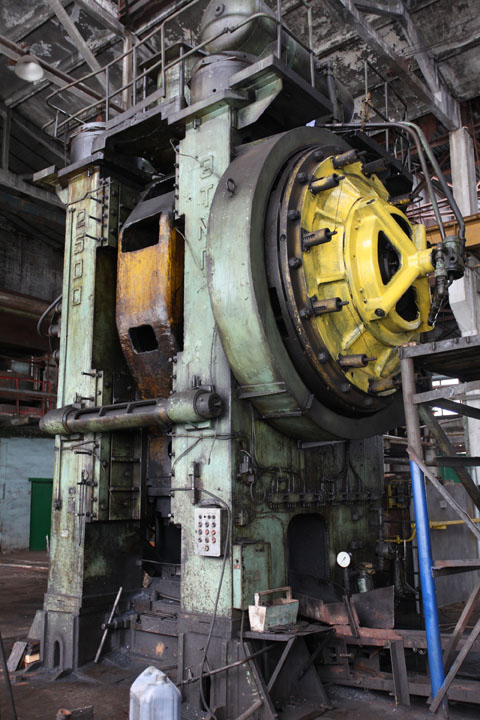

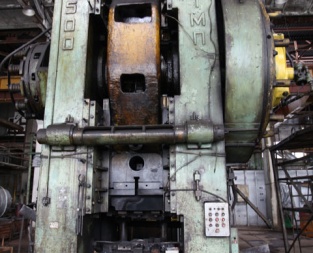

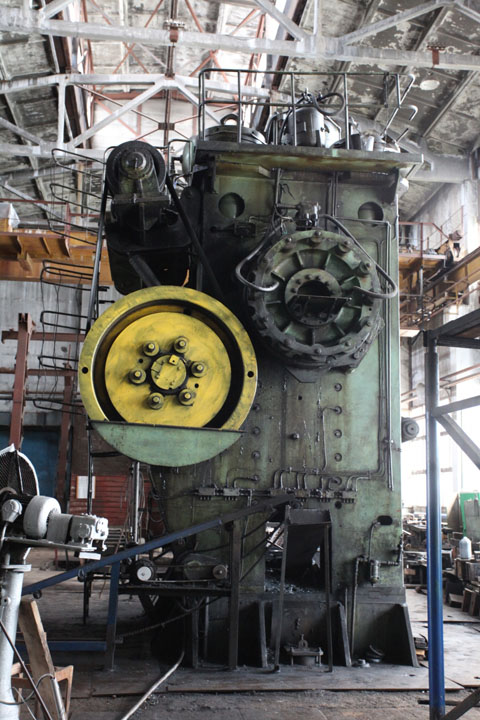

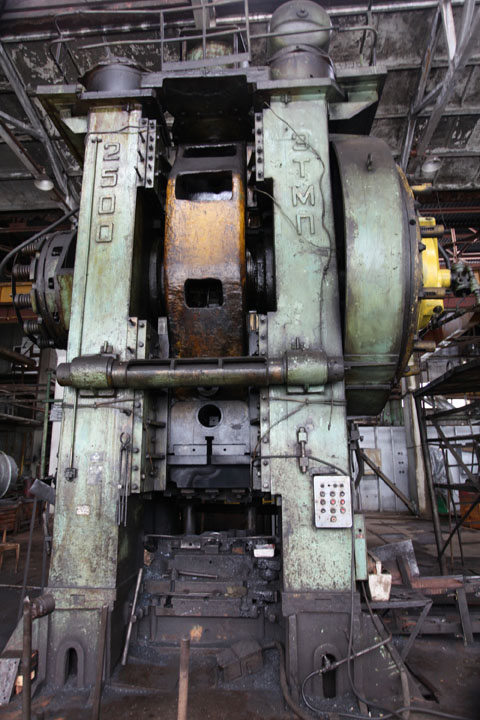

Hot forging press VORONEZH K8544
YOM: 1977
Manufacturer: Voronezh
Made in: Russia
Specification:
Rated capacity: 2500 tons
Shut height: 900 mm
Adjustable distance between table and slide: 10 mm
Dimensions of openings in L. H. press side wall:
-Height: 900 mm
-Width: 700 mm
Table working surface:
-L-to-R: 1200 mm
-F-to-B: 1400 mm
Slide dimensions:
-L-to-R: 1070 mm
-F-to-B: 1120 mm
Slide stroke: 350 mm
Slide strokes per minute (continuous): 60
Number of pitmans: 2
Number of drive stages: 2
Top ejector mechanism:
-Stroke: 50 mm
-Capacity: 63 kN
Bottom ejector mechanism:
-Stroke: 50 mm
-Capacity: 100 kN
Main drive motor power: 90 kW
Overall dimensions:
-L-to-R: 5585 mm
-F-to-B: 3750 mm
-Height above floor level: 6800 mm
Mass (approximately): 183-5 tons
