Hot forging press VORONEZH AKKB8040

Offer #1438

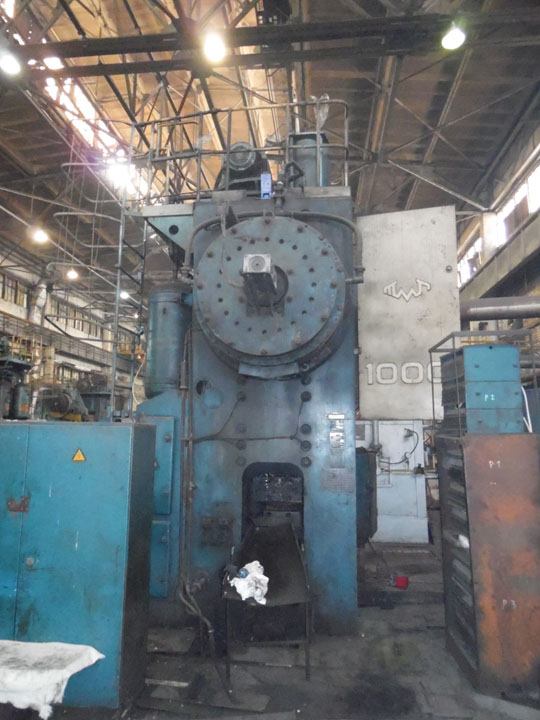

Hot forging press VORONEZH AKKB8040
YOM: 1992
Manufacturer: Voronezh
Made in: Russia

Specification:

Tonnage: 1000 tons
Slide stroke: 250 mm
Frequency of slide strokes: 90/1 min
Distance between table and punch plate of slider in case of upper table location: 580 mm
Adjustemnt of distance between table and slider: 20 mm
Upper ejector:
 -Stroke: 40 mm
 -Power: 31,5 kN
Bottom ejector:
 -Stroke: 30 mm
 -Power: 50 kN
Bed dimensions: 770x990 mm
Slide dimensions: 720x720 mm
Window size in the column: 1250x560 mm
Lower extractor: 5
Upper extractor: 3,15
Overall dimensions: 4430x3500x5145 mm
Total weight: 65700 kg
