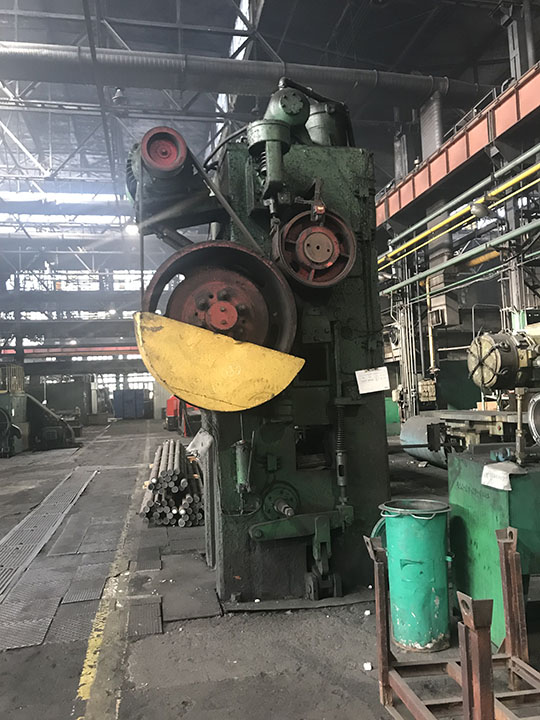

Hot forging press K-862

Hot forging press K-862

Manufacturer: Voronezh Tiazhmechpress

Made in: Russia



Specification:



Capacity: 630 tona

Slide stroke: 200 mm

Slide stroke number in 1 min: 90

The closed height (the least distance between a table and a slider in its bottom position): 560 mm

Table height adjustment: 20 mm

Distance clear between uprights: 680 mm

Table dimensions:

 -Front-to-back: 600 mm

 -Left-to-right: 600 mm

Slide dimensions:

 -Front-to-back: 820 mm

 -Left-to-right: 410 mm

Electrical motor power: 28 kW

Dimensions: 2515x2980x4675 mm

Press weight: 35 tona



Description:



The mechanical forging press is designed for hot stamping and sizing of ferrous and non-ferrous metal forgings for mass and large lot production. In comparison with air and steam hammers, mechanical forging presses possess higher efficiency and production capacity, especially when rolled shape blanks are used. Forging presses produce parts with smaller machining allowances, have the advantage of noiseless operation, do not produce ground vibrations and do not require massive foundations.
