Offer #252

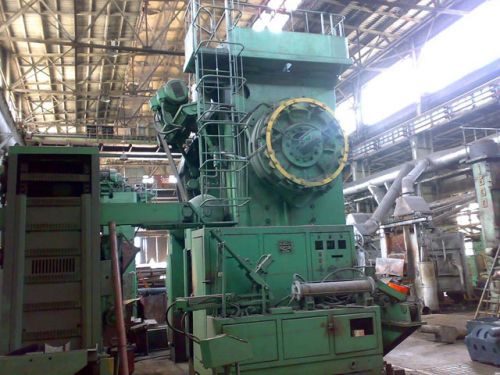

Hot forging press AKKB8544
YOM: 1984
Country of origin: Russia
Manufacturer: Voronezh
Specification:
Capacity: 2500 ton
Shut height: 890 mm
Table to ram adjustment: 10 mm
Dimensions of the table:
-Left-to-right: 1200 mm
-Front-to-back: 1400 mm
Dimensions of the ram:
-Left-to-right: 1070 mm
-Front-to-back: 1120 mm
Ram stroke: 350 mm
Number of continuous strokes per minute: 60
Upper knockout stroke: 60 mm
Lower knockout stroke: 70 mm
Main drive power: 125 kW
Overall dimensions:
-Left-to-right: 5350 mm
-Front-to-back: 4680 mm
-Height over floor level: 6400 mm
Weight (approx.): 203 ton
