Offer #2184

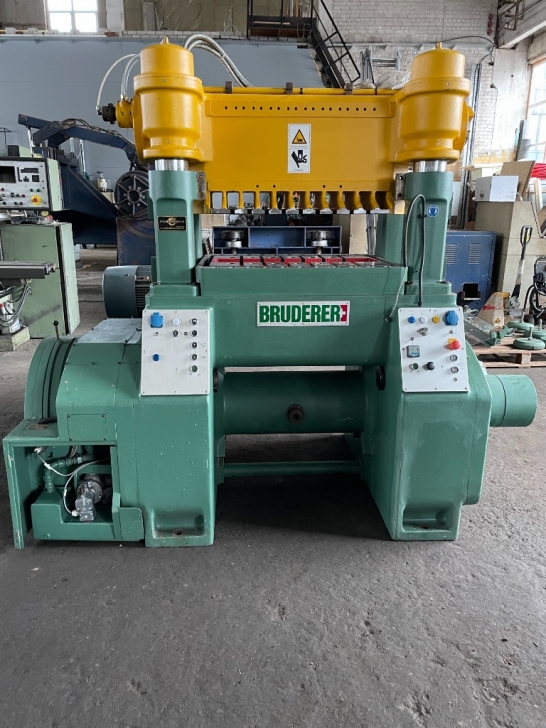

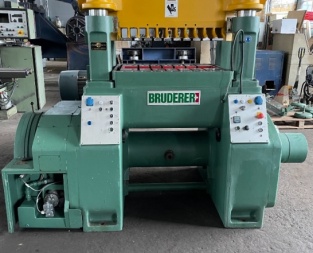

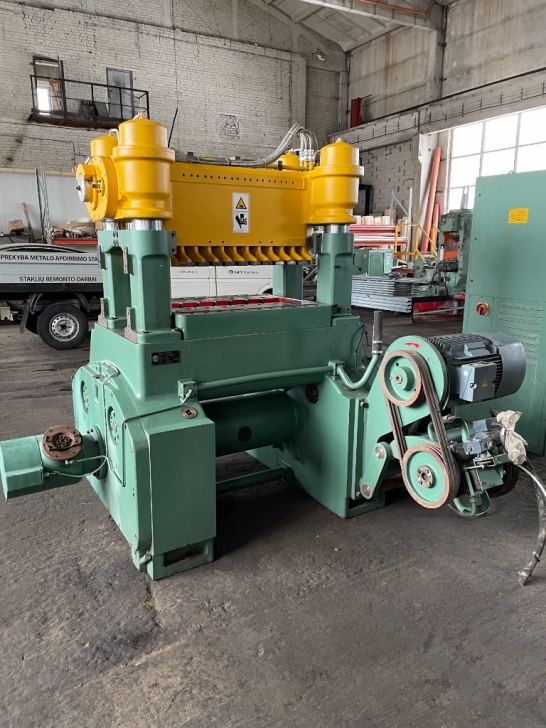

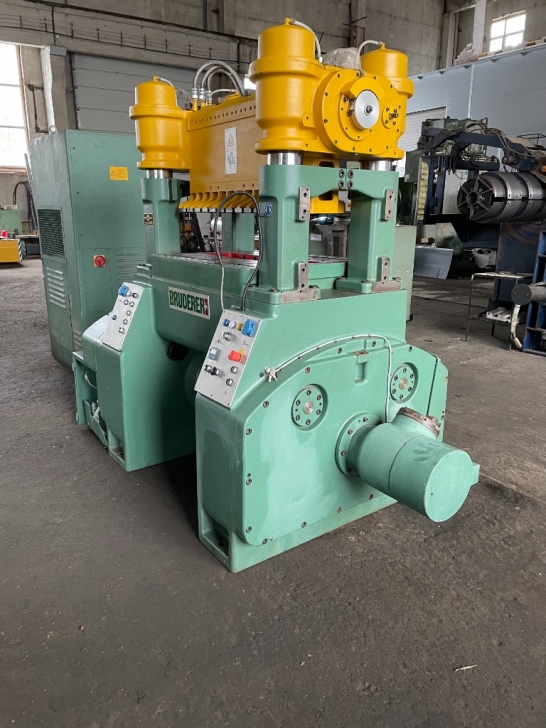

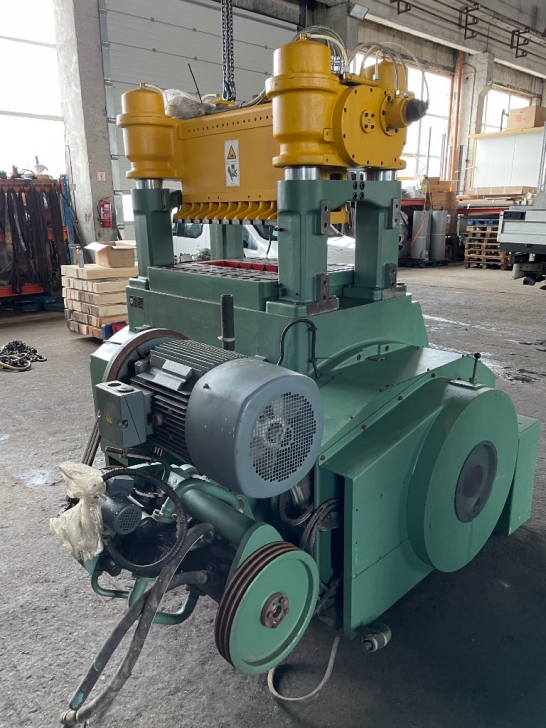

High speed punch press BRUDERER BSTA 60HSL
Manufacturer: BRUDERER AG
Made in: Switzerland
Specification:
Max. punch pressure: 60 tons
Strokes per min: 70-650
Power requirements: 22 kW
Ram height adjustment: 80 mm
Stroke adjustable: 20-76 mm
Max. width of strip: 320 mm
Bolster area:
-External: 920x770 mm
-Internal: 880x620 mm
Max. width of tool – clearance between columns: 920 mm
Compressed air connection: 6-10 bar
Total connected load: 25 kW
Net voltage: 380 V, 50 Hz
Control voltage: 24 V
Machine dimensions:
-Width: 2715 mm
-Length: 2075 mm
-Height: 2200 mm
Weight of the press with electrics: 8600 kg
