Offer #512

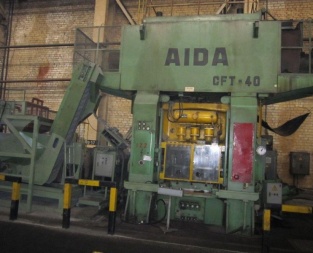

Cold forging transfer press AIDA CFT-40
Made in: Japan
Manufacturer: AIDA
Press is complete, working and very nice condition.
Specification:
Capacity: 400 ton
Slide stroke: 250 mm
Slide strokes per 1 min: 30-40
Closed height (adjustment in top, slide in bottom): 600 mm
Slide adjustment: 30 mm
Slide dimmensions: 1200x750 mm
Table dimensions: 1200x900 mm
Quantity of positions: 3
Applied pneumatic pressure: 5 kg/cm*cm
Tonnage rating point above B.D.C.: 7 mm
Knockout capacity: 20 ton (max 10 at each stage)
Main motor power: 55 kW
