Offer #1886

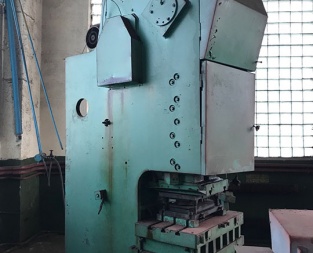

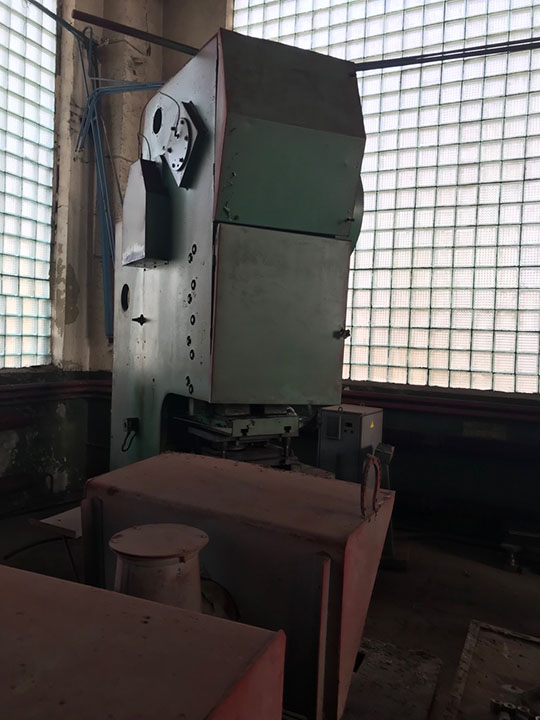

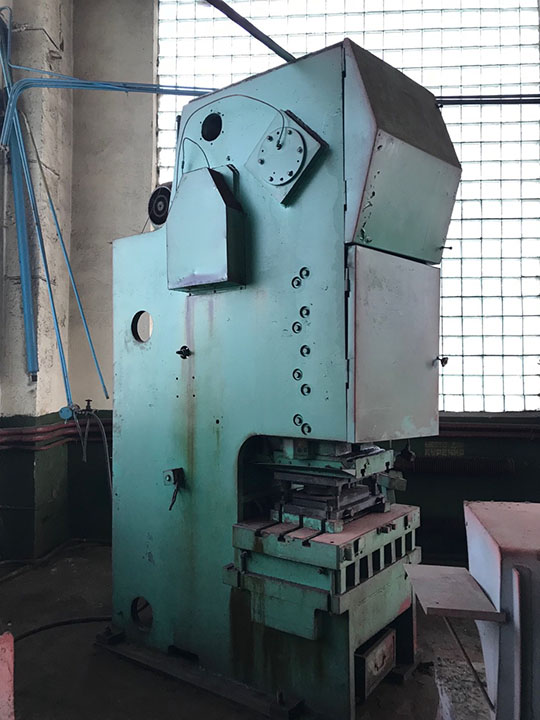

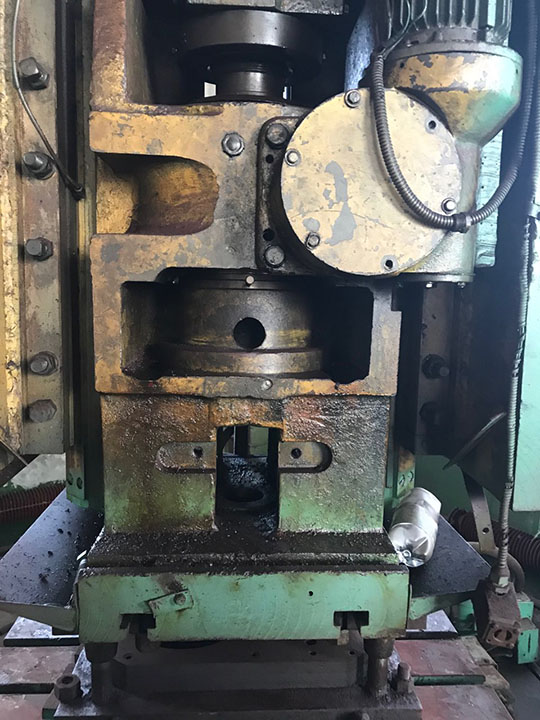

Open single-crank single-action press KG2132
Manufacturer: Pressmash
Made in: Ukraine
Specification:
Nominal effort: 1600 kN
Max. slide stroke: 160…25 mm
Number of continuous slide strokes: 71 1/min
Number of single slide strokes: 28 1/min
Table dimensions: 1000х670 mm
Dimensions of the opening in the table: 480х320 mm
Diameter of the opening in the table: 420 mm
Max. distance between table and slide in its lower position - closed press height: 480 mm
Distance between rod axis and bed: 360 mm
Distance adjustment between table and slide: 120 mm
Distance between bed columns in daylight: 480 mm
Bolster plate thickness: 110 mm
Max. stroke of ejector in the slide: 65 mm
Height of the table above floor: 3700 mm
Brake coupling type: U3514
Number of electric motors: 4
Main drive electric motor power: 16 kW
Press dimensions (length width height): 2340 х 2100 х 3700 mm
Press weight: 12300 kg
Description:
Crank-rod-type pneumatic eccentric presses KG2132 with a force of 160 tons are designed for cutting, pruning, bending, drawing, punching and other stamping operations. They can be used on automatic lines designed to automate production processes.
