Offer #1455

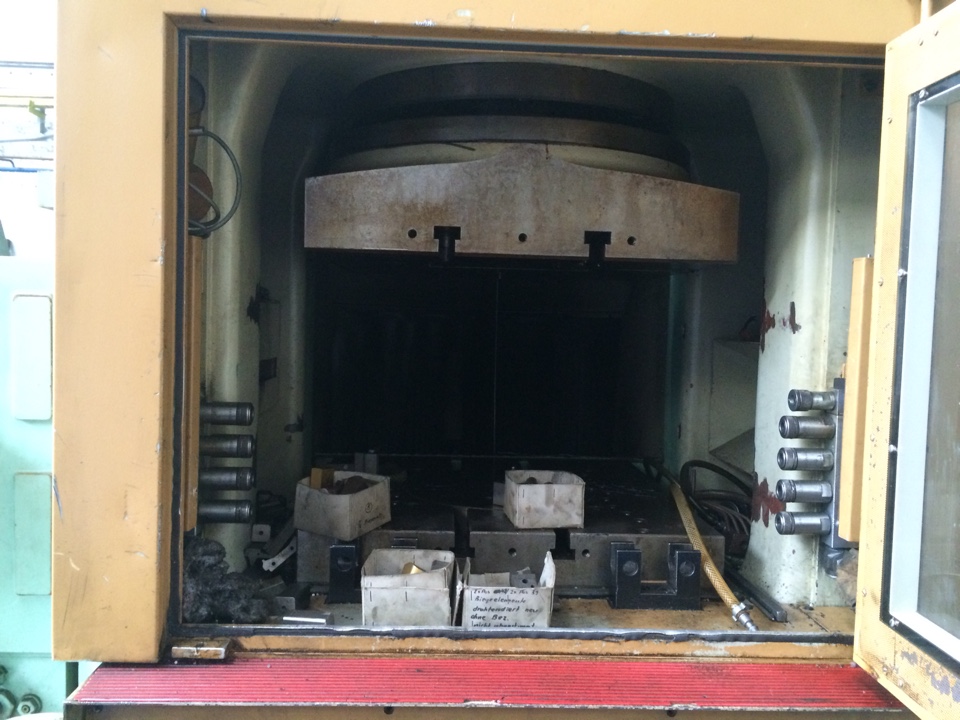

Fine blanking press FEINTOOL GKP-F 320
YOM: 1985
Manufacturer: Feintool AG Lyss
Made in: Switzerland
Specification:
Cutting force: 200 tons
Total force of all functions: 320 tons
Backpressure: 4-80 tons
Clamp: 5-100 tons
Ejection force: 2-28 tons
Kinetic energy of the flywheel: 850 mkg
Drive motor power: 25 hp
Pump motor power: 15 hp
Number of slide strokes per minute: 10-40
Hydraulic power of the shears: 14,2 tons
Front pass between columns: 800 mm
Side pass between columns: 360 mm
Die height:
-Max.: 355 mm
-Min.: 225 mm
Upper bolster plate dimensions: 640x640 mm
Lower bolster plate dimensions: 636x636 mm
Vertikal movement of the upper bolster plate: 130 mm
Height of the slide stroke: 63 mm
T-slots on the bolster plate: M20
Hydraulic stroke of the upper table: 7 mm
Max. strip thickness: 12 mm
Max. strip width: 320 mm
Max. feed length per slide stroke: 320 mm
Min. strip length: 2000 mm
Max. distance of the feed rolls: 20 mm
Max. clamping force: 13 kN
Voltage: 380 V, 50 Hz
Press dimensions:
-Height: 4000 mm
-Width: 2690 mm
-Depth: 2670 mm
Press weight: about 24 tons
