Offer #1625

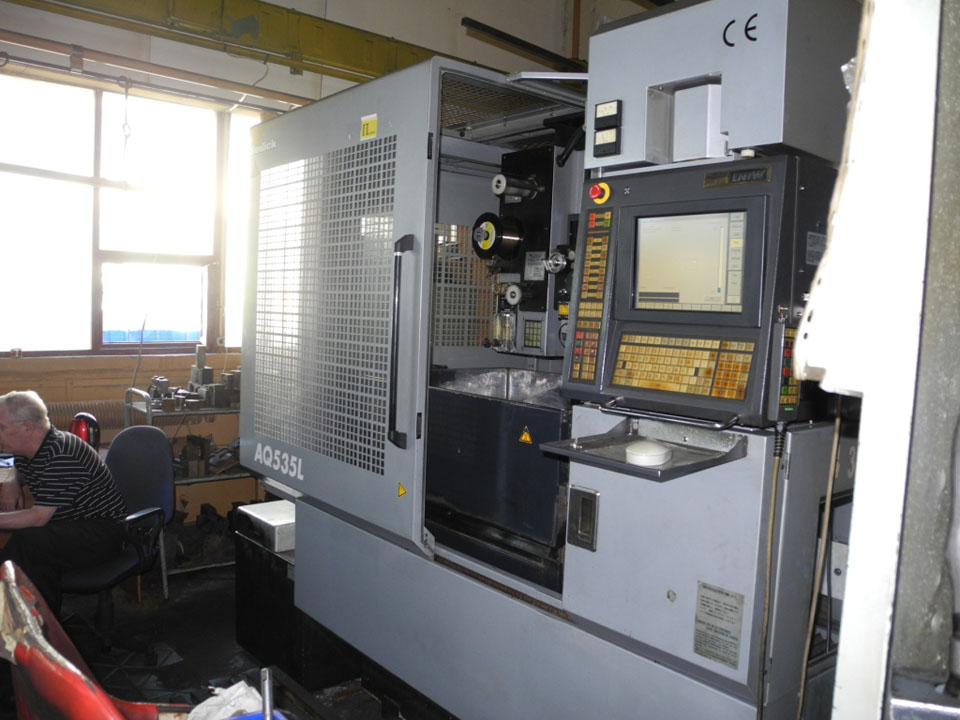

CNC wire EDM machine SODICK Type AQ535L
YOM: 2003
Manufacturer: Sodick Inc.
Made in: USA
Specification:
Max. work-piece dimensions: 750 x 500 x 290 mm
Table stroke on:
-X-axis: 350 mm
-Y-axis: 250 mm
-Z-axis: 220 mm
Stroke of cone table (U-axis and V-axis): 80 x 80 mm
Dimensions of work table surface (length and width): 600 x 400 mm
Dimensions of work tank (length and width): 895 x 650 mm
Max. work-piece height: 220 mm
Max. work-piece weight: 450 kg
Distance between floor and table cover: 965 mm
Angle of cone cutting: 20 deg / 80 mm
Wire tension: 0,3-2,3 kg
Max. feed speed of wire: 250 mm/sec
Wire diameter: 0,1-0,3 mm
Weight of wire coils:
-Standard: 3 kg
-Max.: 6 kg
Machine dimensions:
-Length: 1650 mm
-Width: 1900 mm
-Height: 2040 mm
Mounting machine dimensions:
-Length: 2500 mm
-Width: 2200 mm
Machine weight: 2800 kg
