Offer #862

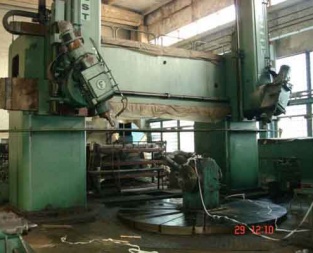

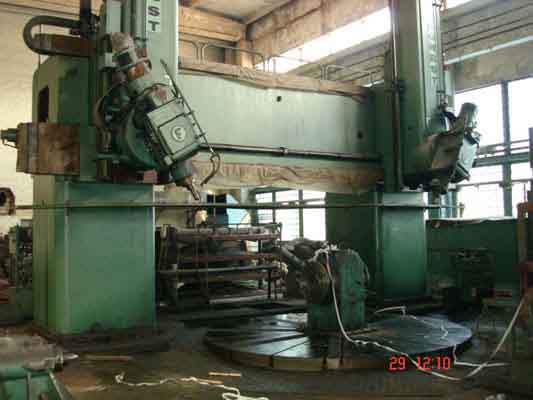

Vertical milling lathe FOREST OR2.4000
YOM: 1976
Manufacturer: Forest
Made in: France
Machine has never been used. It is used for treatment of screw-propellers of the vessels.
Inspection under power is possible.
Specification:
CNC: Konsberg CNC-305

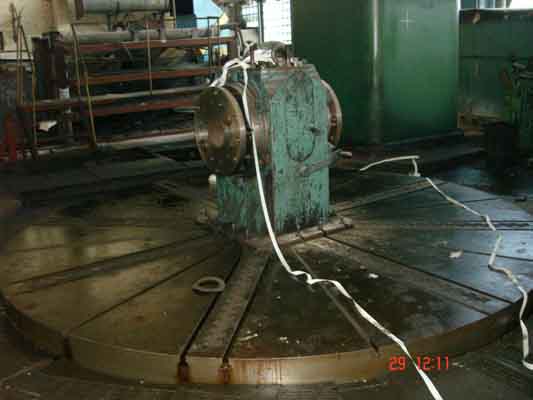

Table diameter: 4200 mm
Turning height: 2000 mm
Max. table load: 20000 kg
Strokes:
-Y (transversal): 2500 mm
-V (transversal): 2500 mm
-Z (vertical): 2000 mm
-W (vertical): 2000 mm
Distance between spindle surface and table surface:
-Min.: 380 mm
-Max.: 2380 mm
Distance between spindle and table:
-Min.: 625 mm
-Max.: 3125 mm
Pass below traverse: 2525 mm
Pass between columns: 4800 mm
Feeds:
-Transversal: 10-2000 mm/min
-Vertical (rapid): 4000 mm/min

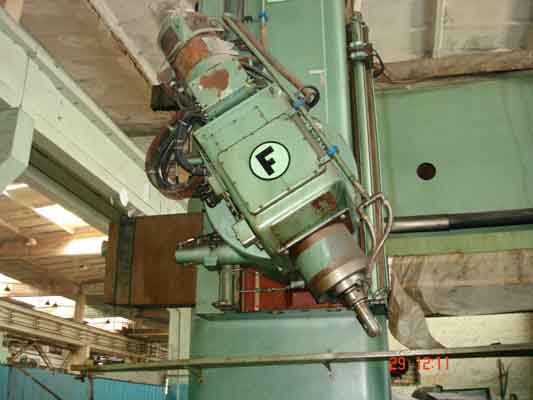

Rotation of headstocks:
-Size: 0,15 rpm
-Rapid: 4 rpm
Rapid travel on X and Y axis: 5000 mm/min
Table rotation:
-Unlimited: 0,003-0,03 rpm
-Rapid: 1 rpm
Spindle speed: 5-800 rpm
Motor power: 37 kW
Machine weight: 96000 kg
