Offer #1433

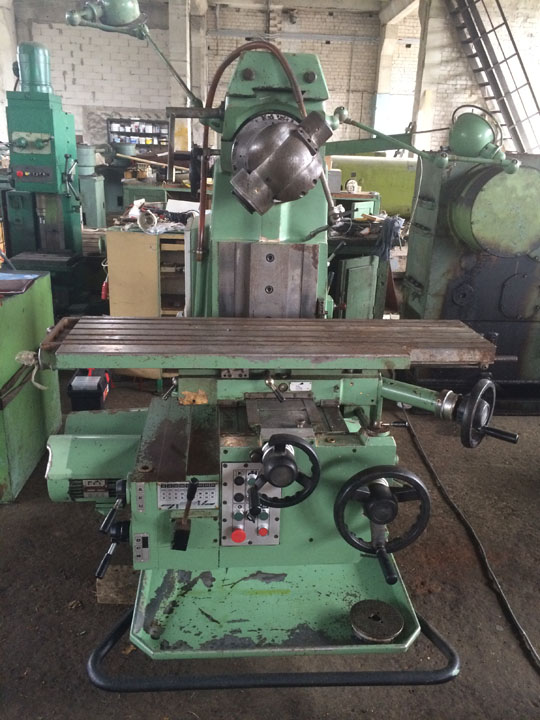

Universal milling machine GAMBIN 11M
YOM: 1981
Manufacturer: GAMBIN
Made in: France
Specification:
Spindle taper: 7:24, nr. 40
Spindle speeds: 40-2800 rpm
Spindle motor: 4,4 kW
Diameter of body: 208 mm
Milling head travel: 250 mm
VERTICAL SPINDLE AXIS
Distance between utmost front and back position: 240 mm
Max. distance between axis in its utmost back position and table in its utmost front position: 230 mm
Min. distance between axis and bed: 75 mm
Max. distance between axis and bed: 315 mm
Max. distance between spindle end and table: 514 mm
Max. distance between body and table: 576 mm
HORIZONTAL SPINDLE AXIS
Max. distance between axis and table: 680 mm
Min. distance between spindle end and bed: 230 mm
Max. distance between spindle end and bed: 480 mm
Max. distance between spindle end and lunette: 355 mm
Max. distance between axis and trunk: 180 mm
TABLE
Table size: 1290x300 mm
Number of T-slots: 5
Width of T-slot: 14 mm
Distance between axes: 50-63 mm
Stroke:
-Longitudinal: 800 mm
-Transversal: 300 mm
-Vertical: 630 mm
FEEDS
18 working feeds: 12-630 mm/min
Rapid travel:
-Horizontal: 2000 mm/min
-Vertical: 500 mm/min
Weight: 2200 kg
