Offer #1439

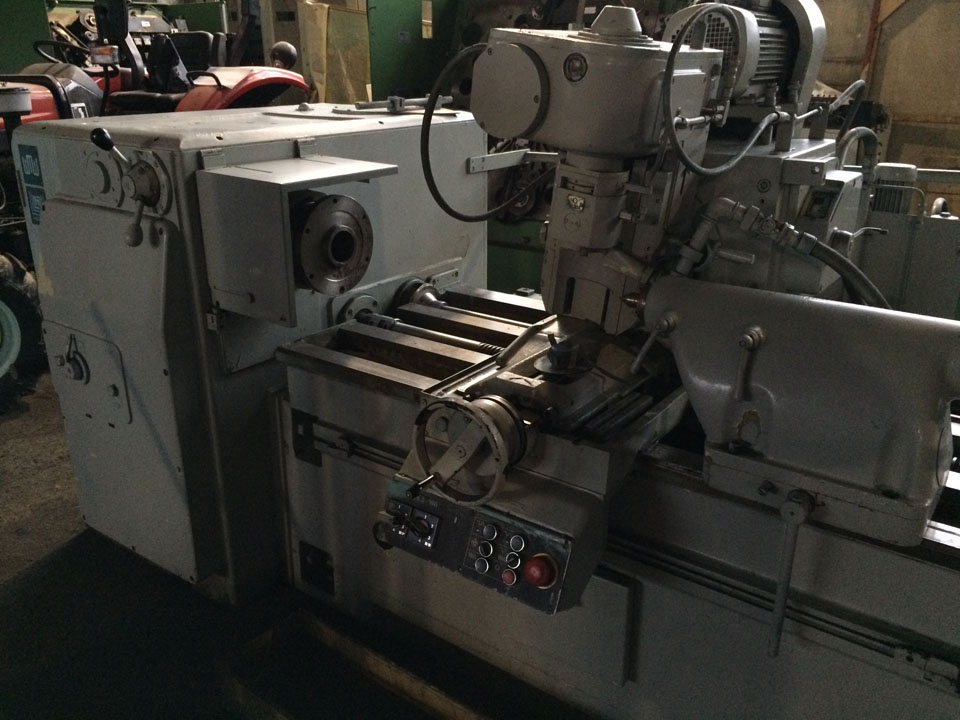

Thread milling machine ZFWVG 250/3Wx1250
YOM: 1989
Manufacturer: WMW HECKERT
Made in: Germany
Specification:
Work-piece diameter over bed: 500 mm
Milling length: 1250 mm
Max. module: 10
Center height over bed: 260 mm
Milling cutter:
-Diameter: 150 mm
-Width: 125 mm
Axial adjustment: 42 mm
Work-piece spindle bore: 102 mm
Bore of the collets: 100 mm
Hob turning speeds: 18-900 U/min
Work-piece turning speeds: 0,0032 - 2,65 U/min
Feeds-rolls: 0,027 - 5,66 mm/U
Longitudinal feeds, infinitely variable: 0,3 - 198 mm/min
Main drive: 4,0 kW
Electrics-voltage/frequency: 380 / 50 V/Hz
Total power requirement: 8,5 kW
Dimensions: 3200x2500x1600 mm
Total weight: 3700 kg
